INVERTER SIEMENS : MICROMASTER



Application : Everywhere in the manufacturing and process industry

    MICROMASTER is use:
  • For outputs ranging from 0.12 kW to 250 Kw.
  • For outputs ranging from 0.12 kW to 250 Kw.
  • In application ranging from pumps and fans,to extrud-ers and winding machines, to conveyor systems.

inverter siemens


Per for centralized requirements

MICROMASTER - The family

Thank to its compact design,MICROMASTER is
perfectly suited for control cabinet mounting,
just as it can be integrated into the design of
stand -alone and series machines.
MICROMASTER represents system and
family cohesiveness:There models with a
comprehensive cross-platform stan-dard
and balanced,graded performance feature

MICROMASTER enables maximum utilization
of the available mounting surface,from small
outputs to large outputs,with a wide range of
supply voltages.As such,it covers a wide field
of applications.
Mechanical component
- Compact,standardized drilling template
- Standardized base components
- Screwless control terminals
- Fulfills the requirememnts of a wide
range of standards

Electronics
- Graded I/O quantity structure
- Various supply voltages

Communication
- Different fieldbus interfaces
- Integrated into Totally Integrated
Automation
The option concept opens up additional pos-
sibilities for custumization:
- Plain-text operetor panel simplify operetion
and also sopport a wide range of languages
- Base components such as reactor and filters
complement the compact solution



Overview : Inverter Siemens

SINAMICS G120C
The compact and versatile inverter with optimum functionality

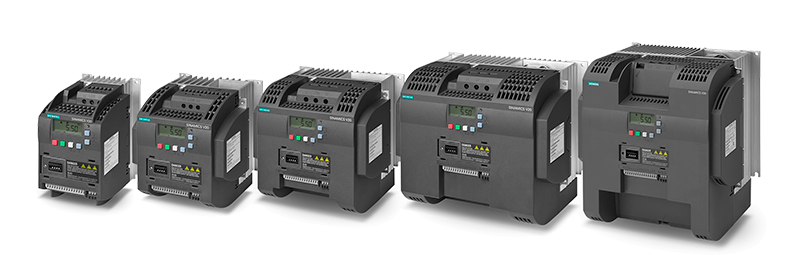

SINAMICS G120C Framesize FSAA, FSA, FSB and FSC with IOP

        SINAMICS G120C is especially compact with a high power density, and offers a well-balanced combination of functions to address a wide range of applications. With its three frame sizes, it covers a performance range of 0.55 kW to 18.5 kW. The new frame size FSAA from 0.55 kW up to 2.2 kW is a real highlight, which sets itself apart as a result of the lower space requirement but with the same power and performance. What is especially important in this regard is that it is fully compatible to the other three frame sizes. The energy-efficient device serves the most common communication interfaces and is an integral part of Totally Integrated Automation More....


Main characteristics

MICROMASTER 410

MICROMASTER 420

Discontinued product The MICROMASTER
410 is no longer avail- able. The model will
be discontinued as of October 1, 2007.
The MICROMASTER 410 can then only be
ordered as a spare part.
“The universal” for three-phase networks
and optional fieldbus interfacing, e.g. for
conveyor belts, material transport, pumps, fans
and machine tools

Power ranges - 0.12 kW to 11 kW

Voltage ranges - 1 AC 200 V to 240 V
3 AC 200 V to 240 V
3 AC 380 V to 480 V

Control methods - • V/f characteristic
• Multipoint characteristic
• FCC (flux current control)

Process control - Internal PI controller

Inputs - 3 digital inputs
1 analog input

Outputs - 1 analog output
1 relay output

Interfacing to automation system - The ideal partner for your automation tasks,
whether with SIMATIC S7-200,
SIMATIC S7-300/400 (TIA) or SIMOTION

Additional features - • BICO technology
• Compound braking for controlled rapid braking
  inverter-siemens-410 inverter-siemens-420

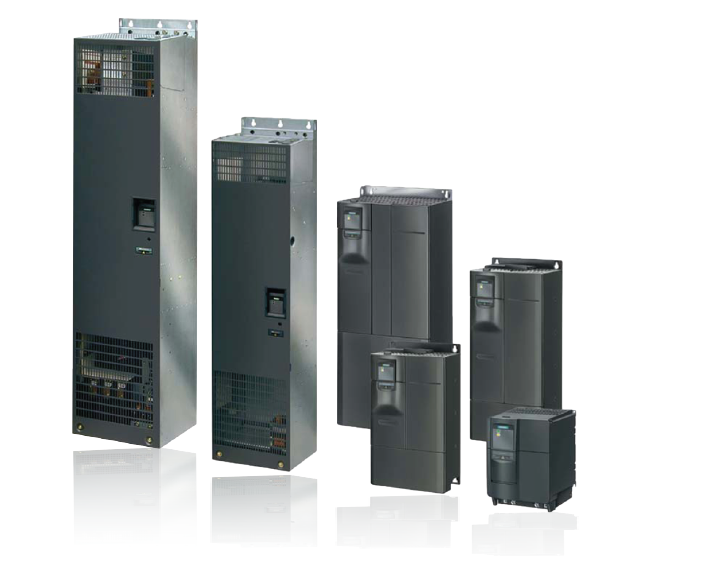

MICROMASTER 430

MICROMASTER 440

“The specialist for pumps and fans”
with optimized OP (manual/automatic switchover),
matched software functionality and optimized power yield



“The all-purpose”
with advanced vector control (with and without encoder
feedback) for versatile applications in sectors such as
conveying systems, textiles, elevators, hoisting
equipment and machine construction

7.5 kW to 250 kW 0.12 kW to 250 kW

3 AC 380 V to 480 V 1 AC 200 V to 240 V
3 AC 200 V to 240 V
3 AC 380 V to 480 V
3 AC 500 V to 600 V

• V/f characteristic
• Multipoint characteristic
(programmable V/f characteristic)
• FCC (flux current control)
• V/f characteristic
• Multipoint characteristic
(programmable V/f characteristic)
• FCC (flux current control)
• Vector control

Internal PID controller Internal PID controller (autotuning)

6 digital inputs
2 analog inputs
1 PTC/KTY input
6 digital inputs
2 analog inputs
1 PTC/KTY input

2 analog outputs
3 relay outputs
2 analog outputs
3 relay outputs

The ideal partner for your automation tasks, whether with
SIMATIC S7-200, SIMATIC S7-300/400 (TIA) or SIMOTION
The ideal partner for your automation tasks, whether
with SIMATIC S7-200, SIMATIC S7-300/400 (TIA) or
SIMOTION

• Low-energy mode
• Load torque monitoring (detects dry run of pumps)
• Motor staging
• Bypass mode
• BICO technology
• 3 selectable drive data kits
• Integrated brake chopper (up to 75 kW)
• Torque control
• BICO technology
inverter-siemens-410 inverter-siemens-420



Option : Inverter Siemens

Assignment of operator panels and modules to the inverter ranges

Options Order No. MICROMASTER
410 1) 420 430 440
Operator panels
OP 1) 6SE6400-0SP00-0AA0
BOP 6SE6400-0BP00-0AA0
BOP-2 6SE6400-0BE00-0AA0
AOP 6SE6400-0AP00-0AA1
AAOP 6SE6400-0AP00-0AB0
CAOP 6SE6400-0AP00-0CA0
Modules
PROFIBUS 6SE6400-1PB00-0AA0
DeviceNet 6SE6400-1DN00-0AA0
CANopen 6SE6400-1CB00-0AA0
Pulse encoder evaluation 6SE6400-0EN00-0AA0
Maximum possible configuration:
One pulse encoder evaluation module + one
communication module + one operator panel
• Possible assignment

inverter siemens

inverter siemens
