Servo APEX DYNAMICS

The APEX servo gearbox APEX GEAR ได้ถูกออกแบบสำหรับใช้ร่วมกับ servomotor ซึ่งกำลังเป็นที่นิยมอย่างมากในปัจจุบัน ด้วยเทคโนโลยีการออกแบบที่ใช้ Helical gear design ซึ่งให้แรงบิดมากขึ้นกว่าเกียร์ธรรมดาถึง 33% สารหล่อลื่น (Nyogel 792D)ที่ไม่ต้องมีการเปลี่ยนถ่ายตลอดอายุการใช้งานโครงสร้างที่เป็น Stainless ร่วมทั้งเครื่องจักร และเทคโนโลยีการผลิตจาก เยอรมันและสวิสเซอร์แลนด์ และอื่นๆที่ทำให้ Gearboxes ของ APEX ให้ค่าประสิทธิภาพสูงร่วมทั้งค่าความผิดพลาดต่ำจึงเหมาะที่นำไปใช้ร่วมกับ Servomotor

" DOWNLOAD BROCHUREB "

AB-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 14 Nm - 2000 Nm
Ratios:
1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
2-stage :15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤1arcmin / ≤3arcmin / ≤5arcmin
2-stage : ≤3arcmin / ≤5arcmin / ≤7arcmin
High efficiency
1-stage : ≥ 97%
2-stage : ≥ 94%
Easy mount
Low noise
Compact structure

SIZE
AB042 / AB060 /AB060A / AB090 / AB090A / AB115 / AB142 /
AB180 / AB220


ABR-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 9 Nm - 2000 Nm
Ratios:
1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14 / 20
2-stage :15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 80 / 90 / 100
/120 / 140 / 160 / 180 / 200
*Only ABR042 2-stage offers 15,20 option
Low backlash
1-stage : ≦2arcmin / ≦4arcmin / ≦6arcmin
2-stage : ≦4arcmin / ≦7arcmin / ≦9arcmin
High efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
Easy mount
Low noise

SIZE
ABR042 / ABR060 / ABR090 / ABR115 / ABR142 / ABR180 / ABR220


AE-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 14 Nm - 2000 Nm
Ratios:
1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
2-stage :15 / 20 / 25 / 30 / 35 / 40 /
45 / 50 / 60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤8 arcmin
2-stage : ≤12 arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low noise
Compact structure

SIZE
AE050 / AE070 / AE090 / AE120 / AE155 / AE205 / AE235




AER-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 9 Nm - 2000 Nm
Ratios:
1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14 / 20
2-stage :15 /20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 80 /90 / 100

/ 120 / 140 / 160 / 180 / 200
*Only AER050 2-stage offers 15,20 option.
Low backlash
1-stage : ≤10 arcmin
2-stage : ≤14 arcmin
High efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
Easy mount
Low noise
Compact structure

SIZE
AER050 / AER070 / AER090 / AER120 / AER155 / AER205 / AER235


AF-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 14 Nm - 2000 Nm
Ratios:
1-stage : 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
2-stage : 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 80 / 90 / 100
Low backlash
1-stage : ≤1arcmin / ≤3arcmin / ≤5arcmin
2-stage : ≤3arcmin / ≤5arcmin / ≤7arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low noise
Compact structure

SIZE
AF042 / AF060 / AF060 / AF075 / AF075/ AF100 / AF140 / AF180 /
AF220


AFR-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 9 Nm - 2000 Nm
Ratios:
1-stage : 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14 / 20
2-stage : 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 80 / 90 /

100 / 120 / 140 / 160 / 180 / 200
*Only AFR042 2-stage offers 15,20 option.
Low backlash
1-stage : ≤2arcmin / ≤4arcmin / ≤6arcmin
2-stage : ≤4arcmin / ≤7arcmin / ≤9arcmin
High efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
Easy mount
Low noise

SIZE
AFR042 / AFR060 / AFR075 / AFR100 / AFR140 / AFR180 / AFR220


AD-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 14 Nm - 2000 Nm
Ratios:
1-stage :4 / 5 / 7 / 10
2-stage :20 / 25 / 35 / 40 / 50 / 70 /
100 / 16 / 21 / 31 / 61 / 91
Low backlash
1-stage : ≤1 arcmin / ≤3 arcmin / ≤5 arcmin
2-stage : ≤3 arcmin / ≤5 arcmin / ≤7 arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low noise
Compact structure

SIZE
AD047 / AD064 / AD090 / AD110 / AD140 / AD200 / AD255


ADS-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 14 Nm - 2000 Nm
Ratios:
1-stage : 4 / 5 / 7 / 10
2-stage : 16 / 21 / 31 / 61 / 91
Low backlash
1-stage : ≤1 arcmin / ≤3 arcmin / ≤5 arcmin
2-stage : ≤3 arcmin / ≤5 arcmin / ≤7 arcmin
High efficiency
1-stage : ≧ 97%
2-stage : ≧ 94%
Easy mount
Low noise
Compact structure

SIZE
ADs047 / ADs064 / ADs090 / ADs110 / ADs140 / ADs200 / ADs255




ADR-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N : 14 Nm - 2000 Nm
Ratios:
1-stage :4 / 5 / 7 / 10 / 14 / 20
2-stage :20 / 25 / 35 / 40 / 50 / 70 / 100 / 140 / 200
*Only ADR047 2-stage offers 20 option.
Low backlash
1-stage :≤2 arcmin / ≤4 arcmin / ≤6 arcmin
2-stage :≤4 arcmin / ≤7 arcmin / ≤9 arcmin
High efficiency
1-stage : ≧ 95%
2-stage : ≧ 92%
Easy mount
Low noise
Compact structure

SIZE
ADR047 / ADR064 / ADR090 / ADR110 / ADR140 / ADR200 / ADR255


PSⅡ-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :8 Nm - 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 9 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
Low backlash
1-stage :≤ 6 ~ 8 arcmin
2-stage :≤ 8 ~ 10 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
Easy mount
Low noise
Compact structure

SIZE
PSII A / PSII B / PSII C / PSII D / PSII E


PSⅡR-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :8 Nm - 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 9 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
Low backlash
1-stage :≤ 10 ~ 12 arcmin
2-stage :≤ 12 ~ 14 arcmin
High efficiency
1-stage :≧ 93%
2-stage :≧ 90%
Easy mount
Low noise
Compact structure

SIZE
PSIIR A / PSIIR B / PSIIR C / PSIIR D / PSIIR E




PAⅡ-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :8 Nm - 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 9 / 10
2-stage : 15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
Low backlash
1-stage :≤ 6 ~ 8 arcmin
2-stage :≤ 8 ~ 10 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
Easy mount
Low noise
Compact structure

SIZE
PAII 042 / PAII 060 / PAII 090 / PAII 115 / PAII 142


PAⅡR-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :8 Nm - 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 9 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
Low backlash
1-stage :≤ 10 ~ 12 arcmin
2-stage :≤ 12 ~ 14 arcmin
High efficiency
1-stage :≧ 93%
2-stage :≧ 90%
Easy mount
Low noise
Compact structure

SIZE
PAIIR 042 / PAIIR 060 / PAIIR 090 / PAIIR 115 /
PAIIR 142




PEⅡ-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :8 Nm - 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage : 15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
Low backlash
1-stage :≤ 6 ~ 8 arcmin
2-stage :≤ 8 ~ 10 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
Easy mount
Low noise

SIZE
PEII 050 / PEII 070 / PEII 090 / PEII 120 / PEII 155


PGⅡ-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :8 Nm - 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
3-stage :120 / 160 / 200 / 280 / 350 / 500 / 700 / 1000
Low backlash
1-stage :≤ 6 ~ 8 arcmin
2-stage :≤ 8 ~ 10 arcmin
3-stage :≤ 10 ~ 12 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
3-stage :≧ 91%
Easy mount
Low noise
Compact structure

SIZE
PGII 040 / PGII 060 / PGII 080 / PGII 120 / PGII 160


PGⅡR-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :8 Nm - 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 9 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 81 / 100
3-stage :120 / 160 / 200 / 280 / 350 / 500 / 700 / 1000
Low backlash
1-stage :≤ 10 ~ 12 arcmin
2-stage :≤ 12 ~ 14 arcmin
3-stage :≤ 14 ~ 16 arcmin
High efficiency
1-stage :≧ 93%
2-stage :≧ 90%
3-stage :≧ 87%
Easy mount
Low noise
Compact structure

SIZE
PGIIR 040 / PGIIR 060 / PGIIR 080 / PGIIR 120 / PGIIR 160

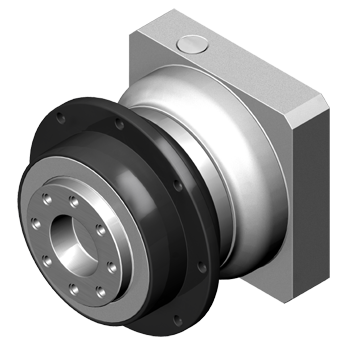

PD-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :10 Nm - 232 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
Low backlash
1-stage :≤ 6 ~ 8 arcmin
2-stage :≤ 8 ~ 10 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
Easy mount
Low noise
Compact structure

SIZE
PD 053 / PD 064 / PD 090 / PD 110


PDR-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :10 Nm - 232 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
Low backlash
1-stage :≤ 10 ~ 12 arcmin
2-stage :≤ 12 ~ 14 arcmin
High efficiency
1-stage :≧ 93%
2-stage :≧ 90%
Easy mount
Low noise
Compact structure

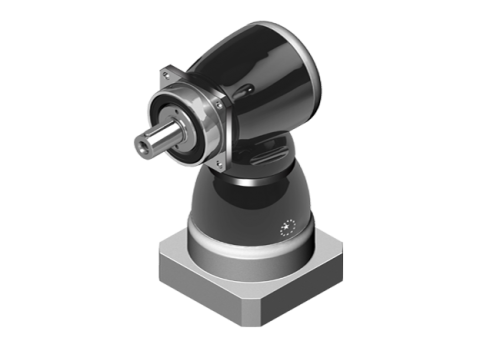

KF-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :18 Nm - 1600 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
Low backlash
1-stage :≦ 3 arcmin
High efficiency
1-stage :≧ 96
Easy mount
Low noise

Compact structure

SIZE
KF060 / KF075 / KF100 / KF140 / KF180 / KF210 /KF240


KH-Series

High Precision Gearbox

OVERVIEW
Output torque
T2N :18 Nm - 1600 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
Low backlash
1-stage :≦ 3 arcmin
High efficiency
1-stage :≧ 96%
Easy mount
Low noise
Compact structure

SIZE
KH064 / KH090 / KH110 / KH140 / KH200 / KH255 / KH285
