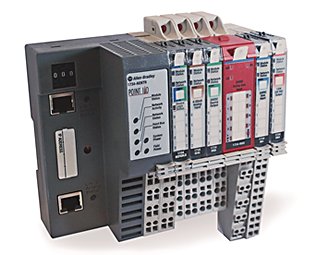

POINT I/O

Our Bulletin 1734 POINT I/O™ modules offer digital, analog, and specialty I/O, as well as POINT Guard safety-rated I/O, with one to eight points per module. You can mix standard and safety I/O in the same system. Comprehensive diagnostics and configurable features make POINT I/O easy to apply.

Features

  • Modular design lets you independently select the I/O, termination style, and network interface
  • Modules slide together for easy install and uninstall for easier maintenance
  • Removable wiring system saves time and money during installation and troubleshooting
  • Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
  • Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
  • Mount horizontally or vertically, with no de-rating required
  • Auto Device Replacement (ADR) reduces downtime
  • Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems

1734 POINT I/O Digital Modules

  • Input, output, and relay output modules
  • Wide variety of voltages
  • Point-level output fault states for short-circuit and wire-off diagnostics
  • Field-side diagnostics on select modules
  • Choice of direct-connect or rack-optimized communications
  • POINT Guard I/O™ modules for safety applications
  • Configurable modules
    • Each point can be configured as a DC input or output
    • Available with DeviceLogix™ technology

1734 POINT I/O Analog Modules

  • Up to eight single-ended inputs or outputs per module
  • Thermocouple and RTD modules available
  • Individually configurable channels
  • On-board scaling
  • Selectable input filters
  • Over- and under-range detection

1734 POINT I/O Specialty Modules

  • Counter and encoder modules
  • Synchronous Serial Interface Absolute Encoder module
  • Serial interface modules (RS-232, RS-485/RS-422)
  • Address Reserve (ARM) module
  • Supports connection to IO-Link enabled devices with the IO-Link master module
