Unidrive SP Free Standing - High power, ready-to-run drive cabinets

125 hp – 2,450 hp (90 kW – 1.6 MW)

230 V | 460 V | 575 V | 690 V

Unidrive SP Free Standing drives are fully engineered and tested drive cabinets for AC input and AC motor output configurations. The entire enclosure is certified to comply with international standards such as CE and UL. Proven design and international approvals free your engineering resources to focus on your application.



Features

Unidrive SP control with ready-to-use convenience

Unidrive SP Free Standing has the same control platform as the Unidrive SP Modular and Panel Mount drives range, offering three option module slots, integrated automation control and high performance motor control only with added convenience for high-power systems.

Free Standing drives can be ordered from the factory with a built-in switch disconnector for supply isolation. This means the drive is delivered to your site ready to be connected thus reducing engineering effort and installation time.

Compact cabinet dimensions

Unidrive SP Free Standing cabinets are very compact. For example, a 355 kW (500 hp) drive is only 400 mm (16") wide and a 675 kW (1,000 hp) drive is only 800 mm (32") wide. This makes Unidrive SP Free Standing the obvious choice where space is at a premium such as for new or retrofit energy saving applications. All drives are shipped in 400 mm (16") wide sections that can be connected quickly making Unidrive SP Free Standing drives easy to handle and locate on site.

Proven reliability

Unidrive SP Free Standing utilizes mass produced modules of proven design and reliability. The modules and cabinets are assembled using a sequential build process that eliminates build variation and provides consistently high quality. Excellent thermal and electrical design and computer modeling has ensured the drives have a long and productive life with trouble-free operation.



Spectifications

Ratings

				NORMAL DUTY [3]			HEAVY DUTY [3]
	COMPACT WIDTH (mm)		ORDER  CODE	MAX  CONT. CURRENT (A)	TYPICAL MOTOR OUTPUT  @ 400V (kW)	TYPICAL MOTOR OUTPUT @ 460V (hp)	MAX  CONT. CURRENT (A)	TYPICAL MOTOR OUTPUT  @ 400V (kW)	TYPICAL MOTOR OUTPUT  @ 460V(hp)
	DRIVE ONLY	WITH SWITCH DIS - CONNECTOR
380-480Vac +/-10-%	400	400	SP64x1	205	110	150	180	90	150
			SP64x2	236	132	200	210	110	150
			SP74x1	290	160	250	238	132	200
			SP74x2[4]	350	200	250	290	160	250
		800	SP84x1	389	225	300	335	185	250
			SP84x2	450	250	400	389	225	300
			SP84x3	545	315	450	450	250	350
			SP84x4	620	355	500	545	315	400
	800	1200	SP94x0	690	400	600	593	315	500
			SP94x1	690	400	600	620	355	500
			SP94x3	900	500	800	790	450	700
			SP94x4	1010	560	900	900	500	800
			SP94x5	1164	675	1000	1010	560	900
	1200	Not Available	SP94x5 + 1 x SP94x5  Ext,	1746	960	1500	1515	830	1250
	1600		SP94x5 + 2 x SP94x5  Ext.	2328	1280	2000	2020	1110	1750
	2000		SP94x5 + 3 x SP94x5 Ext.	2910	1600	2500	2525	1380	2150



Ratings shown are for IP21 at 40°C ambient or IP23 at 30°C ambient, 3kHz switching frequency and 1000m altitude.Ratings shown are for IP21 (NEMA 1) at 40°C ambient or IP23 at 30°C ambient, 3kHz switching frequency and 1000m (3,300ft) altitude.



				NORMAL DUTY [3]			HEAVY DUTY [3]
	COMPACT WIDTH (mm)		ORDER  CODE	MAX  CONT. CURRENT (A)	TYPICAL MOTOR OUTPUT @ 690V (kW)	TYPICAL MOTOR OUTPUT  @ 575V (hp)	MAX CONT. CURRENT (A)	TYPICAL MOTOR OUTPUT  @ 690V (kW)	TYPICAL MOTOR OUTPUT @ 575V (hp)
	DRIVE ONLY	WITH SWITCH DIS - CONNECTOR
500-690Vac +/-10-%	400	400	SP66x1	125	110	125	100	90	100
			SP66x2	144	132	150	125	110	125
			SP76x1	168	160	150	144	132	150
			SP76x2	192	185	200	168	160	150
		800	SP86x1	231	200	250	186	185	200
			SP86x2	266	225	300	231	200	250
			SP86x3	311	315	350	266	250	300
			SP86x4	355	355	400	311	315	350
	800	1200	SP96x0	403	400	450	350	315	400
			SP96x1	400	400	450	347	355	400
			SP96x3	533	500	600	466	450	500
			SP96x4	616	560	700	533	500	600
			SP96x5	711	630	800	622	560	700
	1200	Not Available	SP96x5 + 1 x SP96x5 Ext.	1067	960	1150	933	830	1000
	1600		SP96x5 + 2 x SP96x5 Ext.	1422	1280	1550	1244	1120	1350
	2000		SP96x5 + 3 x SP96x5 Ext.	1778	1600	1950	1555	1380	1700

Ratings shown are for IP21 (NEMA 1) at 40°C ambient or IP23 at 30°C ambient, 3kHz switching frequency and 1000m (3,300ft) altitude.



Normal Duty	Suitable for most applications, current overload of 110% for 165 seconds is available. Where motor rated current is less than the drive rated continuous current, higher overloads are achieved.
Heavy Duty	Suitable for demanding applications, current overload of up to 150% for 60 seconds



Environmental Safety and Electrical Conformance

• Humidity 95% maximum (non condensing) at 40°C
• Altitude: 0 to 3000m, derate 1% per 100m between 1000m and 3000m
• Vibration: Drive Modules tested in accordance with IEC 60068-2-34
• Mechanical Shock Tested: Drive Modules in accordance with IEC 60068-2-27
• Storage temperature: -40°C to 50°C
• Electromagnetic Immunity complies with EN 61800-3 and EN 61000-6-2
• With on board EMC filter, complies with EN 61800-3 (2nd environment)
• EN61000-6-4 with optional EMC filter (contact the supplier of your drive)
• IEC 60146-1-1 General requirements
• IEC 61800-5-1 Safety of Power Drive Systems
• IEC 61131-2 I/O
• EN 60529 Ingress protection
• Safe Torque Off (Secure Disable) meets EN 954-1-cat3
• UL508C (except drives with switch disconnector and IP23 drives)
• CSA C22.2 no 14-05
• IP21 (NEMA 1) cabinet design, optional IP23 (IP23 option not UL approved)

Dimensions and weights

Options

Keypads and parameter storage

Smartcard A memory device that can be used to back up parameter sets and PLC programs and copy them from one drive to another   SM-Keypad SM-Keypad is a high-brightness LED keypad for Unidrive SP (except frame size 0) and Mentor MP drives   SM-Keypad Plus SM-Keypad Plus is a multi-lingual, hot pluggable, backlit LCD display   Drive interface units - Communications ​ ​CT USB Comms Cable The USB Comms cable allows the drive to connect to a PC for use with Unidrive M's PC tools*     ​ ​Operator Interfaces and HMI The powerful CTVue HMI (Human Machine Interface) line and integrated drivers for Control Techniques drives make it easy to integrate HMI with CT drives

Automation and motion option modules

SM-Applications Plus SM-Applications Plus offers high performance programmable logic and motion control together with high-speed I/O and CTNet, a high-speed fieldbus   SM-Applications Lite V2 User-programmable logic and motion control module for standalone drive applications or for when the drive is connected to a centralized controller via I/O or fieldbus   SM-Register A flexible, high performance solution for programmable motion requiring high-speed registration features   SM-EZMotion This module and PowerTools Pro software provide a user-friendly environment for motion programming

Communication option modules

SM-CAN User-programmable CAN AM Option Module allows the development of CAN protocols   SM-CANopen CANopen interface supports various profiles including several drive profiles   SM-DeviceNet SM-DeviceNET SM Option Module   SM-EtherCAT Follower SM Option Module for high performance servo applications   SM-Ethernet Supports Ethernet/IP and Modbus TCP/IP and can generate emails. Provides high-speed drive access, global connectivity and integration with IT network technologies   SM-Interbus Interbus interface SM Option Module   SM-LON LonWorks interface for building automation applications   SM-PROFIBUS-DP Profibus SM Option Module      SM-SERCOS SERCOS interface SM Option Module   SM-PROFINET PROFINET is an Ethernet based industrial network protocol adapting Ethernet hardware and protocols

Input and output option modules

CTNet IO Flexible I/O system for remote connectivity with Control Techniques’ SM-Applications Plus and SM-Register Option Modules   SM IO 24V Protected Overvoltage protected I/O module   SM-IO 120V Provides digital I/O rated to 120Vac   SM-IO 32 Extended digital I/O, adding 32 digital high-speed, bi-directional I/O points to the drive   SM-IO Lite Extended I/O interface with reduced functionality   SM-IO PELV NAMUR standard I/O interface with high-speed I/O   SM-IO Plus Extended I/O interface to increase the number of I/O points on a drive   SM-IO Timer Extended I/O SM Option Module with real-time clock

Feedback option modules

SM-Encoder Output Plus Incremental encoder input and output SM Option Module enables connection with external motion controllers   SM-Encoder Plus Incremental encoder input SM Option Module   SM-Resolver Resolver module is designed for robust feedback in demanding environments     SM-Universal Encoder Plus Additional combined encoder input and output interface supporting Incremental, SinCos, HIPERFACE, EnDAT and SSI encoders

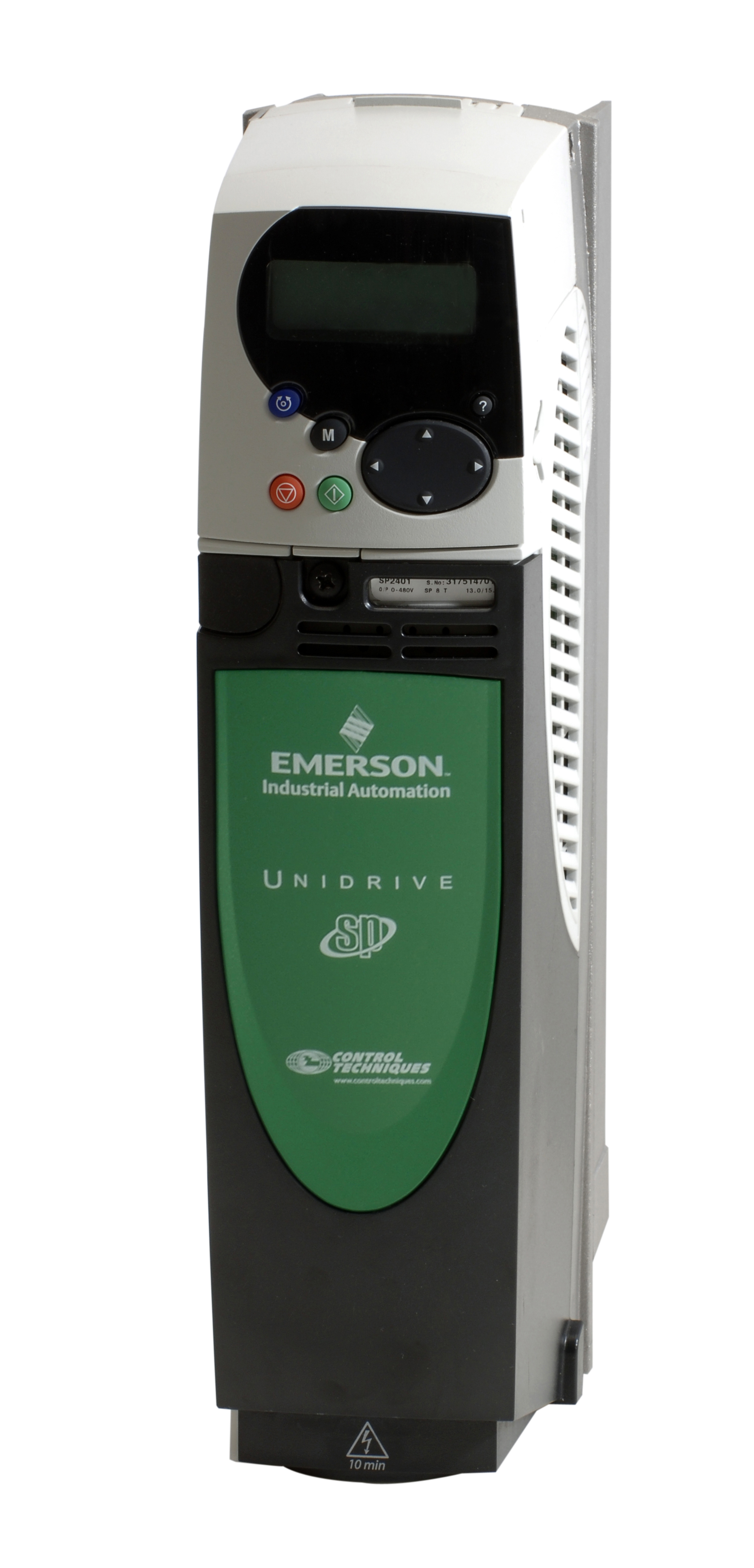

Unidrive SP Model
