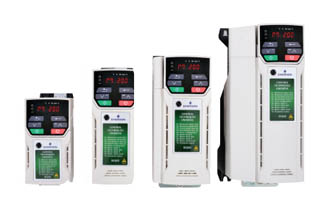

Unidrive M200



Integration through flexible communications

0.25 kW – 132 kW Heavy Duty (0.33 hp - 179 hp)

100 V / 200 V / 400 V / 575 V / 690 V

Being tied into one system can be restrictive. It can leave you trapped with one supplier even when there’s a better option available on the market.

We provide a viable alternative.

Unidrive M200 gives you freedom to connect with many of the common fieldbuses using the modular ‘SI’ interface port. It can communicate with SI-Ethernet, SI-EtherCAT, SI-PROFINET, SI-PROFIBUS, SI-CANopen and SI-DeviceNet. The AI-485 Adaptor option can also connect to RS485 networks using Modbus RTU.

The RFC-A mode means you’ll benefit from consistent running speeds, at current loop rates as low as 125μs. The inclusion of an onboard PLC gives more control, at no extra cost. Additionally, the Unidrive M200 provides the most convenient upgrade path for Commander SK users.

As with all Unidrive M General Purpose drives, fit for purpose is our key priority. That means they are easy to install and built to last.

Features

Flexible system integration with SI communications options

  • SI interface enables integration with a wide range of available industry standard fieldbuses and I/O.
  • AI-485 Adaptor option permits connection to RS485 networks using Modbus RTU.

Improve throughput with advanced open-loop motor control algorithms

  • Rotor Flux Control (RFC-A) gives maximum stability and control of induction motors at all powers.
  • 180% motor overload suitable for heavy industrial machinery applications.

Integrated PLC

  • Removes the need for additional PLC and cabling.

Easy to set-up

  • Designed to make set-up as simple as possible.
  • Many applications require changing just a few settings.
  • Adjustments are easy with the keypad and clear step-by-step guide.
  • Useful parameter guide located on the front of the drive.
  • Concise parameter set for ease of use.
  • For fast, batch production, parameters can be transferred to new drives using standard SD card with AI-Backup module or AI-Smart adaptor.

Reduced application size and cost

  • Unidrive M drives are amongst the smallest in their class.
  • Drives can be fitted side-by-side to save even more space.
  • Designed for easy assembly in or out of a cabinet.
  • DIN rail mounting supported below 1.5kW.

Save energy

  • Low power standby mode – drives can sit idle for significant periods.
  • Automatic 3-speed cooling fan –intelligently responds to load.
  • Square law V/F mode - optimized for quadratic loads like pumps and fans.
  • Dynamic V/F mode - keeps energy usage and motor losses to a minimum.
  • Unidrive M is 98% efficient – only 2% energy is lost in the conversion process across the drive.

Minimize downtime with robust and reliable drives

  • Conformal coated PCBs – for increased resilience to moisture, dust, chemicals and temperature extremes.
  • Patented air flow system – efficiently cools while protecting internal components.
  • Ingress protection up to IP21 – UL open class (NEMA 1) compliant.



Spectifications

Key data

  • 0.25 - 132 kW (0.33 - 179 hp)
  • Supply phases:
    • Size 1 to 4: 110 V drives – 1 phase, 230 and 400 V drives - 1 or 3 phase
    • Size 5 upwards: 3 phase

Standard features

Option slots:

  • 1 (size 2 and above)

Parameter cloning via:

  • PC tools
  • SD card with AI-Smart Back Up
  • AI-Smart Adaptor

VOLTAGE RATINGS

100 V (100 V - 120 V ± 10%)

200 V (200 V - 240 V ± 10%)

400 V (380 V - 480 V ± 10%)

575 V (500 V - 575 V ± 10%)

690 V (500 V - 690 V ± 10%)



CONTROL MODE

Open loop vector or V/Hz induction motor control

Open loop Rotor Flux Control for induction motors (RFC-A)

Open loop permanent magnet motor control (RFC-S)



Closed loop Rotor Flux Control for induction motors (RFC-A)



Closed loop permanent magnet motor control (RFC-S)



Active Front End (AFE) power quality convertor





FRAME SIZE

DIMENSIONS (H X W X D)

WEIGHT



mm

in

kg

lb

1

160 x 75 x 130

DIN rail mounting*

137 x 75 x 130

6.3 x 3.0 x 5.1

DIN rail mounting*

5.4 x 3.0 x 5.1

0.75 1.65

2

205 x 75 x 150

DIN rail mounting*

180 x 75 x 150

8.1 x 3.0 x 5.9

DIN rail mounting*

7.1 x 3.0 x 5.9

1.0 2.2

3

226 x 90 x 160 8.9 x 3.5 x 6.3 1.5 3.3

4

277 x 115 x 175 10.9 x 4.5 x 6.9 3.13 6.9

5

391 x 143 x 192

15.4 x 5.6 x 7.6

7.4

16.3

6

391 x 210 x 221 15.4 x 8.3 x 8.7 14 30.9

7

557 x 270 x 280 21.9 x 10.6 x 11.0 28 61.7

8

803 x 310 x 290 31.6 x 12.2 x 11.4 52 114.6

9A

1108 x 310 x 290 43.6 x 12.2 x 11.4 66.5 146.6
​9E ​1069 x 310 x 288 ​42.1 x 12.2 x 11.3 46​ 101.4​



 All dimensions include mounting brackets except for the DIN rail alternatives for frame size 1 and 2.

*Additional fixings required to maximize security



Options

Keypad

Remote keypad
All the features of the CI-Keypad LCD, but remote mountable. This allows flexible mounting on the outside of a panel and meets IP66 (NEMA 4)

System Integration Modules - Communications

SI-PROFIBUS
PROFIBUS interface module

SI-DeviceNet
DeviceNet interface module

SI-CANopen
CANopen interface module.

SI-Ethernet
Ethernet module supports EtherNet/IP and Modbus TCP/IP

SI-EtherCAT
EtherCAT interface module



​SI-PROFINET RT
PROFINET interface module

System Integration Modules - Additional I/O

SI-I/O
Extended I/O interface module to increase the number of I/O points on a drive



Drive interface units - Back-up

AI-Back-up Adaptor
Port adaptor for SD card parameter cloning, and an input for 24 V back-up
AI-Smart Adaptor
Has built in memory for parameter cloning, and an input for 24 V back-up

Drive interface units - Communications

AI-485 Adaptor 24 V
Port adaptor that allows the drive to communicate via RS485. Includes an input for 24V.



​CT USB Comms Cable
The USB Comms cable allows the drive to connect to a PC for use with Unidrive M's PC tools*

*Also requires an adaptor
