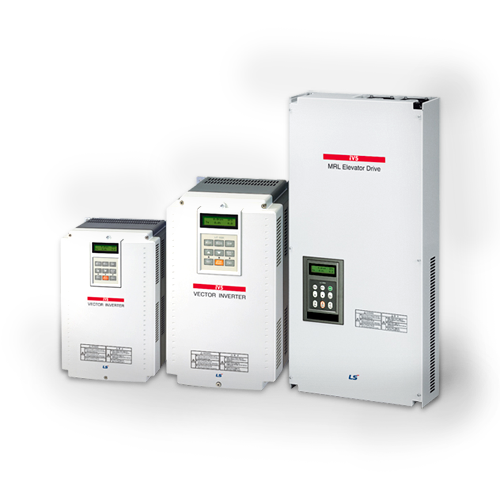

High duty full flux vector control VFD LS Starvert iV5 series realizes the high precision vector control in entire operational area and its highly precise speed control guarantees superb control stability in the elevator controls.ers..
- 3 phase 200V : 2.2~37kW(3~50HP), 200~230V
- 3 phase 400V : 2.2~800kW(1~1067HP), 380~480V
- 400V DC input type : 5.5~500kW(7.5~666HP)

Features

• Ultimate performance solution for System Drive
• Advanced Speed & Torque control (200% instantaneous torque: Max. 250%)
• Precious Speed & Position synchronization operation
• Static motor parameter Auto-tuning
• Draw / Droop / Process PID control
• Highly precious control through optional Sincos Encoder
• Synchronous motor sensorless control (SPM & IPM motors)
• Specialized functions for various applications
• -Load balance function
• -Diameter calculation / Taper function
• -Splicing / Inertia compensation function
• -Quick stop function
• Built-in Dynamic braking transistor (2.2~22kW[3~30HP])
• User-friendly LCD keypad (Detachable)
• Plug-in type control terminals
• Extension I/O boards (Optional):
• -EL I/O (for Elevator application)
• -Encoder division (open collector)
• -Synchronization option (Speed/Position control)
• -Sincos encorder
• Communication boards (Optional)
• -RS485(LS Bus / Modbus RTU)
• -Profibus-DP
• -DeviceNet
• Monitoring & commissioning PC based software tool (Drive View)



Spectifications



LS-IV5 Model
