Features

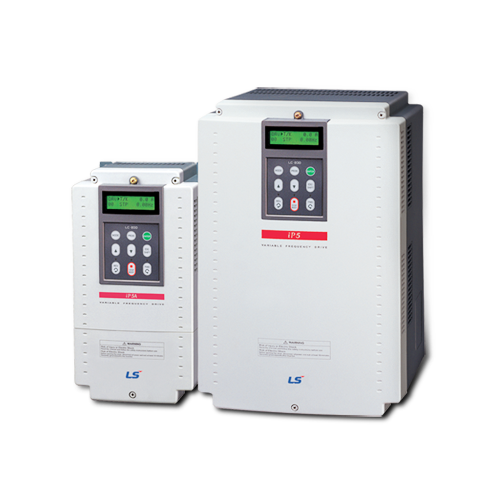

Fan & Pump specialized VFD Starvert iP5A series adopt various functions as standard for operation of Fan and Pump.
- 3 phase 200V : 5.5~30kW(1~400HP), 200~230V
- 3 phase 400V : 5.5~450kW(1~600HP), 380~480V

• Specialized functions for Fan & Pump:Advanced PID control (Pre-PID, Dual PID) Multi Motor Control function (Up to 4 motors: 5.5 ~ 90kW[7.5~125HP])
• Energy saving & High efficiency:
• - Sleep & Wake-up function
• - Flying Starting function
• - Automatic energy saving function
• - Flux Braking Algorithm
• Improved protection functions:
• - Pre-heater function
• - Low Leakage PWM
• - Safety stop function
• - Automatic carrier frequency change
• Selectable V/f, Sensorless vector control
• Long-life condenser & Simple framework
• Easy Start function
• Selectable PNP/NPN input signal
• Plug-in type control terminals
• Cooling fan On/Off control
• Built-in RS485(LS Bus) communication
• Communication boards (Optional): Modbus RTU, DeviceNet, Profibus-DP, LonWorks,BACnet, Modbus TCP*
• Monitoring & commissioning PC based software tool (Drive View)



Spectifications



Dimensions



LS-IP5A Model
