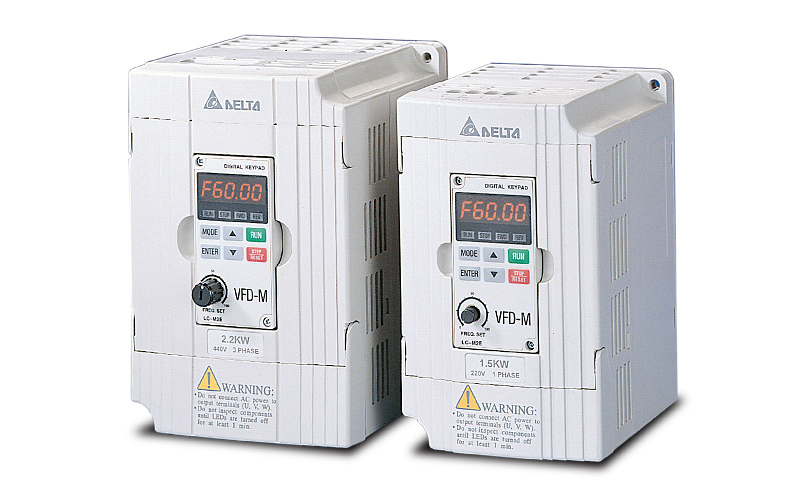

VFD-M Series

Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.

• Output frequency 0.1 ~ 400 Hz

• Adjustable V/f curve and vector control

• Carrier frequency up to 15 kHz

• Auto torque boost & slip compensation

• Built-in PID feedback control

• Built-in MODBUS communication, baud rate up to 38400 bps

• 0 speed holding function

• Built-in sleep / revival function

• Support communication module (DN-02, LN-01, PD-01)

​Applications​

Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine, elasticizer, etc.

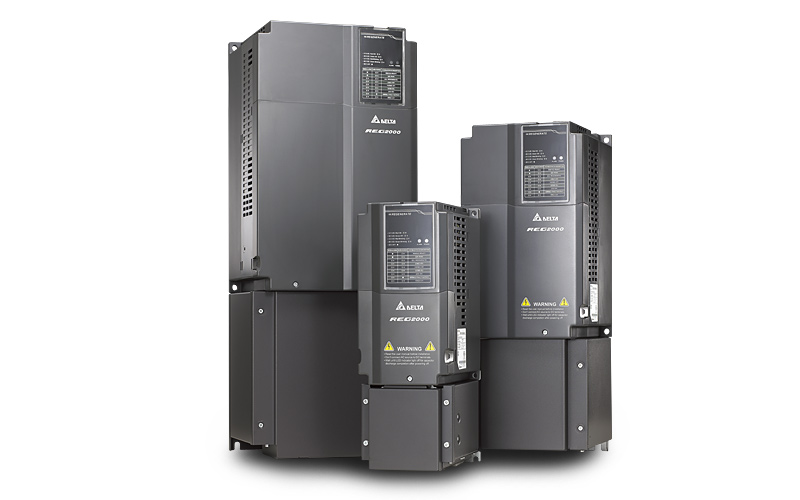

REG2000 Series

A traditional drive system used for inertia load work generally performs rapid deceleration, braking and positioning. When its motor is in generator mode it produces large amounts of regenerative energy that must be consumed to maintain a stable DC bus voltage and safe operation. The traditional method to solve the regenerative energy problem is to install a brake resistor. While it is easy to install and is low cost, it takes up a large amount of space and requires installing additional devices to dissipate the heat. This method provides limited efficiency and wastes the regenerative energy.

Delta's REG2000 series is capable of collecting and converting your system's regenerative energy into reusable electricity for the ultimate in energy savings. The installation process is as simple as installing a brake resistor, but with only half the size and better efficiency. The REG2000 is your best green energy solution for power regeneration.

• Improves drive brake torque 125% to 150%

• MODBUS 485 communication to real-time monitor kWh and cost

• High flexibility, compatible with other inverters and servo drives

• Parallel connections* for large power applications

• More option cards* available upon purchase: MODBUS TCP, CANopen (DS301), PROFIBUS, DeviceNet, EtherNet/IP

• * Please contact Delta Industrial Automation

• Large-inertia load applications:centrifuge equipment, industrial laundries, roving machines and more.

• 4-quadrant load applications: elevators, cranes, pumpjacks and more.

• Quick braking applications: machine tools, bag making machines, auto storage and retrieval systems, press machines and more.

• Long-term energy feedback applications: printing machines, escalators and more.​

REG/AFE/M SERIES Model
