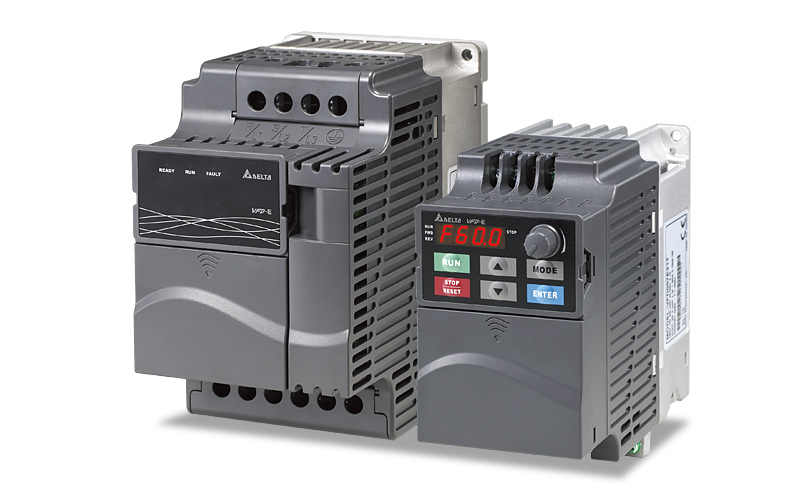

VFD-E Series

Sensorless Vector AC Micro Drive. The VFD-E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.

• Output frequency: 0.1~600Hz

• Modular & compact design

• Built-in PLC function

• Built-in EMI filter (230V 1 phase / 460V 3 phase)

• Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks and CANopen)

• RFI-switch for mains

• Easy DC BUS sharing

• Flexible extension

• Complete Protection

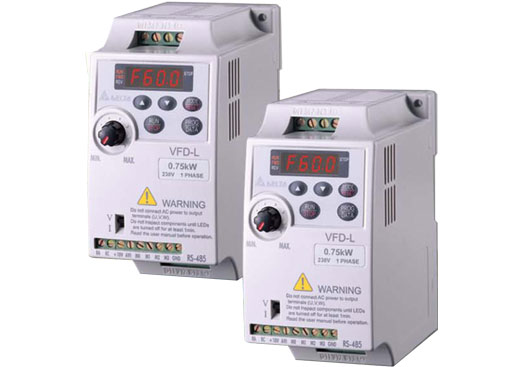

VFD-L Series

• Output frequency 1.0 ~ 400Hz​

• Adjustable V/f curve​

• Carrier frequency up to 10 kHz​

• Auto torque boost and slip compensation​

• Build-in MODBUS communication, baud rate up to 9600 bps​

• Built-in EMI filter​

   ​
Applications​

Simple wood cutting, conveyer belt, wire drawing machine, etc.



VFD-EL Series

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built In keypad.

• Output frequency: 0.1 ~ 600Hz

• 3 points adjustable V/f curve

• Built-in PID feedback control

• RFI-switch for IT mains

• Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)

• Use RS-485 communication interface (RJ-45) with Modbus protocol

• Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen

• Complete protection function

E/L/EL SERIES Model
