C2000 Series

The VFD-C2000 series is a high-level field oriented control AC motor drive with a high-performance variable-frequency technology, FOC control. It features versatile driving controls, modular design, wide variety of applications, easy maintenance, low malfunction rate, self diagnosis and competitive market price and brings customers not only the high-efficiency construction but also the most economic solution to compete with the global market.

Specifications

• Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)​

• Outstanding 4-quadrant torque control/limit​

• 2 in 1 (induction motor and synchronous motor)​

• Built-in Delta PLC function, safe stop function and brake unit​

• Support of various network protocols​

• Synchronous position control​

• Long-life design and life detection of important components​

• Enhanced protections and adaptation to ambient conditions​

• Complies with global safety standards, including CE, UL and cUL​

• Modular design for easy maintenance and many extensions​

• High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)​



CP2000 Series

Delta's Sensorless Vector Control Drive CP2000 Series has extended the idea of energy saving and uses this principal as the basis of its design. The CP2000 is specifically designed for applications such as air blowers, pumps and HVAC drives with its intelligent PID control providing the greatest efficiency. The Sensorless Vector Control (SVC) offers timely response to load torque increase/decrease which satisfies customer requirements for load changes while enhancing motor performance. A 3-step V/F curve response is used in the variable torque environment to adequately adjust the input voltage and attain the greatest overall performance; this function is especially helpful in pumps and fans applications. It also includes additional functions for operation and protection in variable load environments, such as flying starts, auto-acceleration/deceleration, momentary power loss restarts, auto-tuning, and more. The CP2000 series provides you with the ultimate energy-saving solution for your applications.

Specifications

• With a built-in 10K steps Delta PLC allows user to execute distributional control and independent control when connecting to a network system. Delta CP2000 series drives provide you the intelligent control possibility beyond your imagination.

• The calendar function allows user to program the PLC procedure, the ON/OFF in chronological order, the daylight saving time and etc.

• A wide range of models (0.75~400KW) to fulfill the demands of different industries.

• The modularized design eases the maintenance and expansion.

• High speed communication interfaces with MODBUS protocol and BACnet protocol built in. Diverse communication methods to satisfy clients@@ needs on multi-controls. So the following options are available for you: the ProfiBUS-DP, the DeviceNet, the MODBUS TCP, the Ethernet-IP and the CANopen Cards.

• Long-life design and self diagnosis for key components.

• Special PCB coating design (Printed Circuit Board) for enhancing environmental tolerance.

• Complied with global safety standards: CE, UL and cUL

• Standard LCD model (IP20/NEMA1) with built-in PLC to support up to 10K steps

• Excellent heat-sink design. Able to operate at 50°C ambient temperature and to adjust automatically rated output value to make the AC drive to work continuously.

• Run fire mode while emergency to have uninterrupted smoke releasing and pressure adding

• Multi pumps control at fixed amount, fixed time circulating control. Able to control 8 pumps at the same time. (Such as Image01 and Image02, optional multi-control relay card is required.)

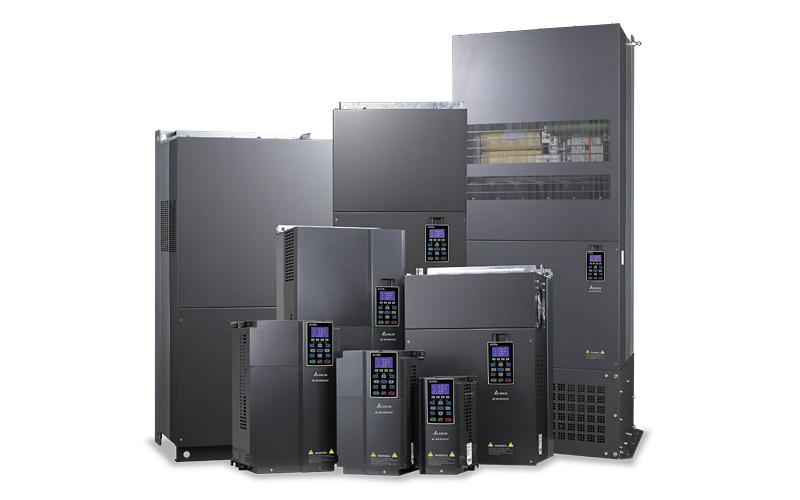

CH2000 Series

Using new drive technology, Delta presents you with its next generation CH2000 Series AC Motor Drive. Providing high performance with robust design the CH2000 is equipped with a larger starting torque and high overload capability to fulfill the needs of heavy load and impact loading applications.

Specifications

Super Heavy Load (SHD)

- Overload ability: rated current of 150% up to 60 seconds, 200% up to 3 seconds

- Starting torque: above 200% at 0.5Hz in normal conditions, up to 200% at 0Hz in FOC+PG mode

- Output frequency: 0.00~600.00Hz (for model above 90kW: 0.00~400Hz)

- Induction motor and synchronous motor control

- Built-in PLC program capacity: 10K steps

- Noise reduction



C/CB/CP/CH SERIES Model
