Miniature Circuit Breaker (MCB) : Eaton(moeller)

Eaton’s Power Distribution Components

For effective circuit protection, Eaton offers a variety of circuit breakers to choose. Browse our selection, including, miniature, molded case and air circuit breakers and vacuum interrupters, to find the right solution for your application.

Miniature Circuit Breaker-PLS6, PLSM, PLHT

The X-Pole series offering consists of PLS6, PLSM, PLHT miniature circuit breakers, providing high quality DIN circuit protection for residential, commercial and industrial applications, featuring a guide for secure terminal connection, and compatible with standard busbar which can be positioned above or below

LIST NO.
PLS6-C
PLS6-C_/2
PLS6-C_/3
PLS6-C_/4
PLZ6-C_/1N
PLS6-C_/3N

LIST NO.                   LIST NO.
PLSM-C                        PLHT-C
PLSM-C_/2                   PLHT-C_/2
PLSM-C_/3                   PLHT-C_/3
PLSM-C_/4                   PLHT-C_/4
PLZM-C_/1N                 PLHT-C_/3N
PLSM-C_/3N

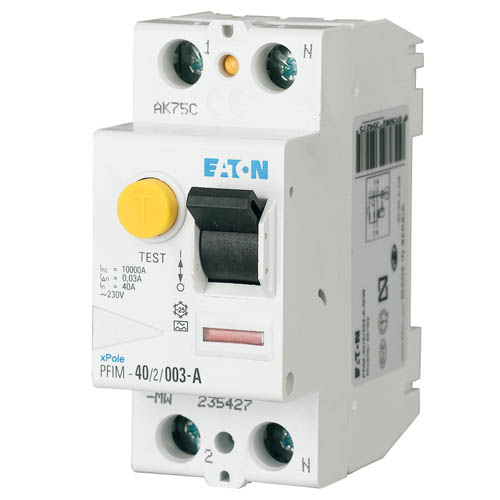

Residual Current Device (RCCB)-PFIM

A complete range of compact residual current devices for fault current/residual current and additional protection. Suitable for a variety of residential, commercial and industrial applications

LIST NO.
PFIM-25/2/003
PFIM-40/2/003
PFIM-63/2/003
PFIM-25/4/003
PFIM-40/4/003
PFIM-63/4/003

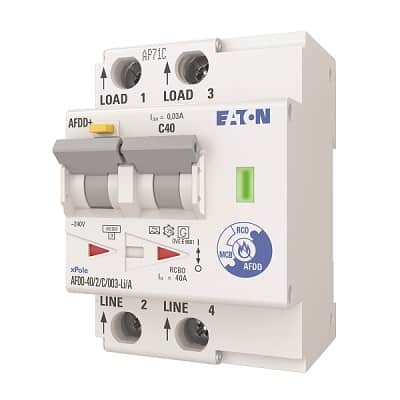

Arc Fault Detection (AFDD)

The AFDD+ provides a full protection solution against electrical ignited fires
The AFDD+ provides a full protection solution in one device that enhances consumers’ peace of mind against fires ignited by electrical installations, while adding additional comfort. This all-in-one device gives the consumer full protection in his home and enables the installer to offer and install products that comply with new codes and standards.

LIST NO.
AFDD-10/2/C/003
AFDD-13/2/C/003
AFDD-16/2/C/003
AFDD-20/2/C/003
AFDD-25/2/C/003
AFDD-32/2/C/003
AFDD-40/2/C/003

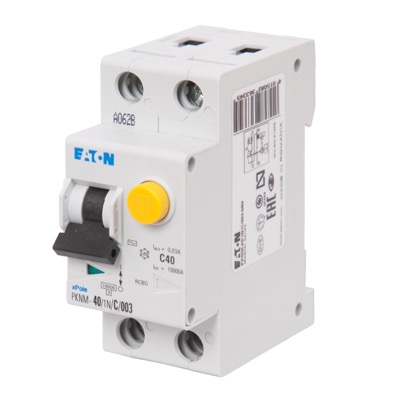

Residual Current Device (RCBO)-PKNM

High-quality residual current device / miniature circuit breaker combination, line voltage-independent breaking capacity mainly 10 kA.

LIST NO.
PKNM-6/1N/C/003
PKNM-10/1N/C/003
PKNM-16/1N/C/003
PKNM-20/1N/C/003
PKNM-25/1N/C/003
PKNM-32/1N/C/003
PKNM-40/1N/C/003

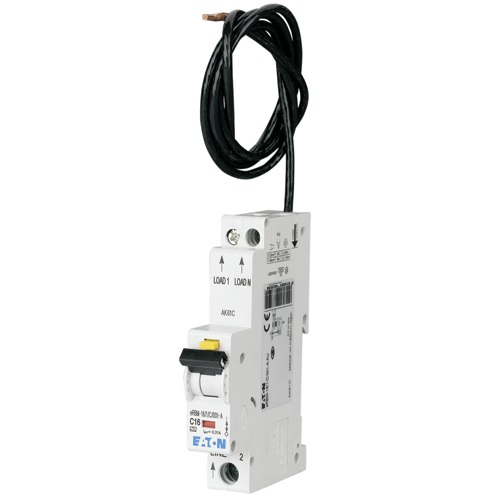

Electronic Combined RCD/MCB Device eRBM

Innovative, high-quality residual current device / miniature circuit breaker combination, with a design width of one module unit only, line voltage-dependent, 1+N-pole.

LIST NO.
eBRM-6/1/C/003
eBRM-10/1/C/003
eBRM-13/1/C/003
eBRM-16/1/C/003
eBRM-20/1/C/003
eBRM-25/1/C/003
eBRM-32/1/C/003
eBRM-40/1/C/003
eBRM-45/1/C/003

Miniature Circuit Breaker For motor-Z-MS

Motor-protective circuit-breaker with thermal overload release and magnetic short-circuit release, for switching and protecting three-phase motors with outputs of up to 15 kW (380/400 V) or other loads with currents of up to 40 A, can also be used as a main switch, isolating characteristics to IEC/EN 60947, contact position display red/green

LIST NO.
Z-MS-_/2
Z-MS-_/3
