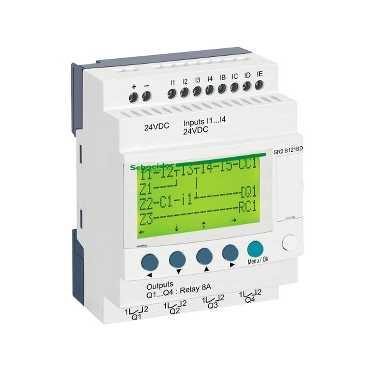

PLC SCHNEIDER ZELIO

Features

Compact range: 3 monobloc models with 10, 12 or 20 I/O and versions available with or without display and buttons.
Modular range: 2 bases with 10 or 26 I/O that can be extended using:

  • Modbus or Ethernet communication extension modules
  • 6, 10 or 14 discrete I/O and 4 analog I/O extension modules.

Extreme compactness: up to 26 I/O within 124.6 x 90 x 59 mm.
Supply voltage of bases: 12 V DC, 24 V DC, 24 V AC, 100... 240 V AC.
Large back-lit LCD display: 4 lines of 18 characters and 1 line of icons, contextual navigation using 6 buttons.
Serial or USB connecting cables for smart relay/PC connection.
Connection interface (smart relay/PC) for Bluetooth wireless connection.
Zelio Soft 2 intuitive programming software: programming using:

  • function block diagram (FBD): 32 pre-programmed functions, 7 Grafcet functions, 6 logic functions
  • contact language (LADDER): 12 pre-programmed functions.

Safe programming: coherence test, simulation and monitoring modes, supervision window, etc.
Remote monitoring and control of installations using Modem Communication Interface (Analog or GSM).

Benefits

Step into an intuitive world!

Simple to select, install and program, Zelio Logic is suitable for all your applications.
Flexible, it offers you the choice of 2 ranges - Compact or Modular, extendable - and 2 programming languages (FBD or LADDER).
Open, it also enables the control and monitoring of your installations in any situation, either on site or remotely, etc.
