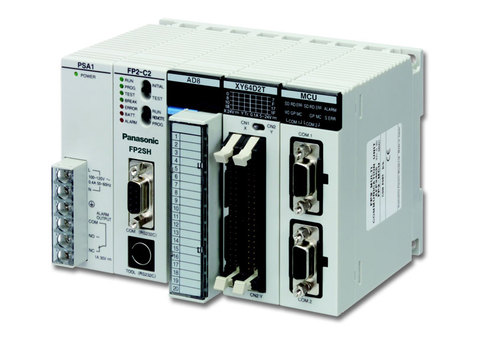

A high-performance model for high-speed operation
Scanning time of 1ms for 20k steps. With an operating speed at the top of its class, super high-speed processing is made possible. The result is a dramatically decreased tact time and high-speed device.
Large programming capacity of up to 120k steps
Large programming capacities of 60k and 120k are available, depending on the model.
Combine modules like building blocks
I/O units, intelligent units, power supply units and backplanes can be used together for the FP2 and the FP2SH. I/O units can be located anywhere on the backplane.
Optional small PC card is also available
The small PC card is available for programming backup or data memory expansion. This allows you to process great amounts of data.
Built-in comment and real-time clock functions
These functions, optional with the FP2, are built right into the FP2SH.
| Performance specifications | ||
|---|---|---|
 |
||
| PLC type | FP2-C2, FP2-C2L, FP2-C2P, FP2-C3P | |
| Inputs/outputs | Central: max. 1600 (with 25 modules) Locally expanded: max. 8172 (via MEWNET-F or S-LINK) |
|
| Memory | RAM (EPROM or FROM and IC memory card optional) | |
| Programme memory | FP2-C2L 32,000 steps |
|
| Number of instructions | ||
| Basic instructions | 95 | |
| High-level instructions | 434 | |
| Operating speed | 0.03µs per basic instruction | |
| Internal relay (R) | 14,192 | |
| Memory | Timer/counter (T/C) | 3,072 |
| Data register (DT) | 10,240 words | |
| File register (FL) | 32,765 words x 3 banks | |
| Master control relay (MCR) | 256 (1st programme: 256 points / 2nd programme: 256 points) | |
| Jump labels (JMP + LOOP) | 256 (1st programme: 256 points / 2nd programme: 256 points) | |
| Max. main memory programme steps |
1,000 | |
| Number of subroutines | 100 | |
| Interrupt programme | 1 | |
| Time interrupt | 0.5ms to 1.5s | |
| Other functions | Test run operation, forced input/output, interrupt processing, batch conversion, function for multiple instructions in RUN mode, calendar time, computer link and modem control via the TOOL and COM port, IC card, 2MB SRAM, flash-EEPROM, ROM operation, comment input function | |
