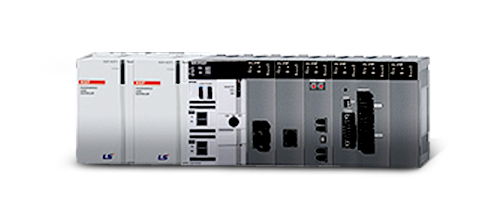

PLC LS XGR



Redundancy system for high-speed process control based on IEC Processing speed: 42ns/step I/O Points: Max. 131,072 Total memory: 32MB (Program 7MB, Data 2MB, Reserved 7MB, Flash 16MB) Switching over time: 50ms Built-in 256 PID loops control


Features

High performance

  • Processing speed: 42ns/step
  • CPU synchronization via fiber optic cable
  • I/O Points: Max. 131,072
  • Total memory: 25MB (Program 3MB, System 4MB, Data 2MB, Flash 16MB)
  • Switching over time: 22ms

  • Easy expansion installation using network
  • Max.31 expansion base
    Distance: Fiber optic 2km (Max. expansion 60km), Twisted fair 100m (Max. expansion 3km)
  • Program upload and download via expansion base
  • No limit to install the communication master on the expansion base

  • Enhanced maintenance via system history and network ring configuration
  • Convenient system analyze using Operation history, Error history, System History
  • Ring configuration to prevent a line disconnection error
  • Network monitoring, Protocol monitoring function
  • Error channel monitoring via flag
  • Graphic display for the system configuration
  • Safe module exchange via Wizard
  • IEC 61131-3 Standard language
  • LD, ST, SFC, IL (read only)
  • Program configuration and data type based on IEC

  • Variety of communication function
  • Easy interface using Open network
    (Ethernet, Profibus-DP, DeviceNet, RS-232C, RS-422/485, etc)
  • Max.24 communication module installation on the expansion base (High speed link 12, P2P 8)
  • Network diagnosis via network and frame monitoring
  • PLC link via dedicated communication base on Ethernet (RAPIEnet)

  • Variety of input and output module
  • 8 / 16 / 32 / 64 points (8 / 16 points Relay output)
  • Input / Output / Mixed module

  • Enhanced analog function
  • Enable to install the analog module on the expansion base (Max. 250, Analog input 139)
  • Insulated type and Temperature module
  • Easy to set the parameter via I/O parameter and flag
  • Debugging function via special module monitoring

  • Integrated programming & engineering environment
  • XG5000 : Easy to program, various monitoring functions and enhanced editing function
  • XG-PD : Convenient setup for communication and network parameter
  • XG-PM software package: Software package for positioning module
