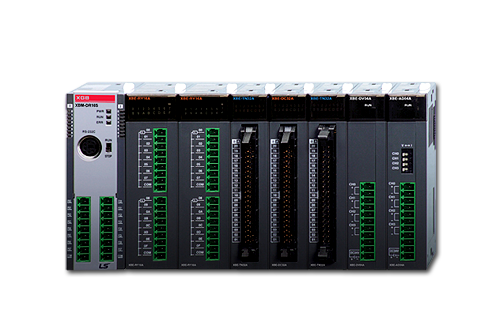

PLC LS XGB

XGB series is the micro PLC that offers maximum automation at minimum cost. With its high performance and functionality, it can support from simple control to complex task.


Features

XGB, which is a micro PLC that offers maximum automation value at minimum cost, Is capable of handling most tasks from simple to complex control with high performance and functionality. (XEC: IEC Standard Programming)

Compactness & High Performance

  • XGB is more compact but provides powerful functions and performance.
  • Compact & Powerful solutions & XGB’s steadfast competitiveness.



Compactness & High Performance
. XBM Modular Type XBC E-Type XBC S-Type XBC/XEC H-Type
Max. I/O Points 256 38 256 384
Processing Speed 160 ns/step 240 ns/step 94 ns/step 83 ns/step
Expansions 7 Stages Only 2 Options 7 Stages (Expansion + Option) 10 Stages



Easiness & Convenience

XGB offers convenient user interface with various network diagnosis & monitoring functions and back-up function

  • Integrated programming environment
    • Enhanced user interface with XG5000/XG-PD
    • Various monitoring functions.
    • Network diagnosis and monitoring
  • Optimum communication environment
    • Powerful communications: Built-in RS-232C / 485, 2 Expansions for communication
    • Network configuration via Ethernet and Cnet I/F




Spectifications



XEC

With IEC program and compact solution. New XGB provides optimum control solution with user-friendly and utmost efficiency for small-medium system



Features

With IEC program and compact solution.
New XGB provides optimum control solution with user-friendly and utmost efficiency for small-medium system

  • CPU Processing speed: 0.083㎲/step
  • Max. I/O point: 384
  • Program memory: 200KB
  • Built-in RTC (Real Time Clock)
  • IEC standard programming
  • Flash memory back-up (Program/ Comment/ Parameter)

XGB Model
