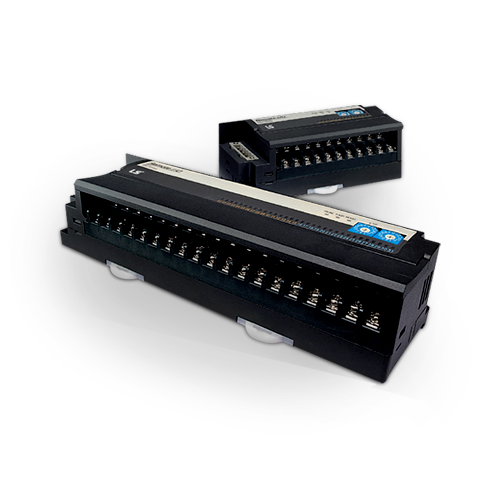

PLC LS SMART I/O
Features
- Reduction in the amount of wiring
- Real-time control of distributed I/O devices
- Rnet, Profibus-DP, DeviceNet, Modbus (RS-422/485) support
- Various I/O modules (DT, TR)
- A : Sink (NPN), fixed terminal block, 0.1A (Rated load current)
- B : Source (PNP), fixed terminal block, 0.5A (Rated load current)
- C : Source (PNP), removable terminal block, 0.5A (Rated load current)
- A1 : Sink (NPN), fixed terminal block, 0.5A (Rated load current)
- C1 : Sink (NPN), removable terminal block, 0.5A (Rated load current)
Features (Expandable type)
[ SMART I/O (Expandable Type) ]
- Easy configuration of remote system using XGB expansion I/O
- Up to 8 modules expandable with Network adapter
- Max. 256-point digital I/O
- Network adapter: Profibus-DP, DeviceNet, Rnet
Specifications
| Item | Input | Output | Mixed Input / Output | |||||
|---|---|---|---|---|---|---|---|---|
| DC(Sink/Source) | TR(Sink) | Relay | DC(Sink/Source) | TR(Sink) | ||||
| Point | 16 | 32 | 16 | 32 | 16 | 16 | 16 | |
| Rated input Voltage(Load voltage) | DC24V | DC24V | DC24V / AC110V / 220V |
DC24V | DC24V | |||
| Rated input current(Load current) | 7mA | 0.1A/2A | 2A/5A | 7mA | 0.1A/2A | |||
| Response time | Off->On | Under 3ms | Under 0.5ms | Under 10ms | Under 3ms | Under 0.5ms | ||
| On->Off | Under 3ms | Under 1ms | Under 10ms | Under 3ms | Under 1ms | |||
| Common (Point/COM) | 16/COM | 16/COM | 8/COM | 16/COM | 16/COM | |||
| Current consumption | 35mA | 40mA | 30mA | 65mA | 400mA | 35mA | 30mA | |
| Supporting network & type name | Rnet | GRL-D22A | GRL-D24A | GRL-TR2A | GRL-TR4A | GRL-RY2A | GRL-DT4A | |
| Profibus-DP | GPL-D22A | GPL-D24A | GPL-TR2A | GPL-TR4A | GPL-RY2A | GPL-DT4A | ||
| DeviceNet | GDL-D22A | GDL-D24A | GDL-TR2A | GDL-TR4A | GDL-RY2A | GDL-DT4A | ||
| Modbus | GSL-D22A | GSL-D24A | GSL-TR2A | GSL-TR4A | GSL-RY2A | GSL-DT4A | ||
Field Network Support
| Item | Rnet(LS SMART I/O) | Profibus-DP | DeviceNet | Modbus |
|---|---|---|---|---|
| Protocol | LSIS dedicated Rnet Protocol (Fnet for Remote) |
Profibus-DP (RS-485/EN50170) |
DeviceNet (CAN) | Modbus (RS422/485) |
| Transmission speed | 1Mbps | 9.6kbps~12Mbps | 125/250/500kbps | 2.4kbps~38.4kbps |
| Transmission distance | 750m/Segnet | 100m~1.2km | 500/200/125m (Thin Cable:100m) |
500m |
| Topology | Bus Token | Bus | Trunk & Drop | Bus |
| Transmission method | Pass & Broadcast | Token Pass & Master/Slave (Poll) | CSMA/NBA (Poll Cyclic, COS, Strobe) |
Master/Slave (Poll) |
| Max. number of stations | 32/Segment (In 32/ Out32) |
32/Segment | 64 | 32 |
| Link capacity | 2,048/Master (64 sta.×32pt.) |
1K/Master: -PUEA 7K/Master: -PUEB |
2,048 pt./Master | 64 pt./station |
Dimensions
16-point
32-point
