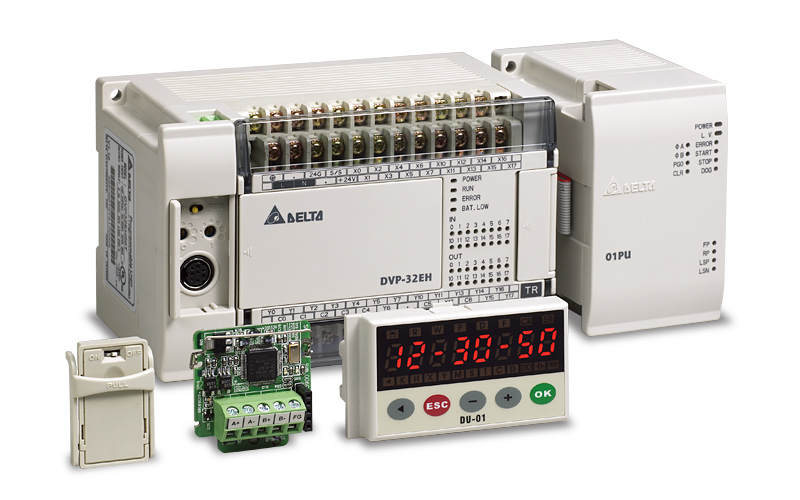

PLC DELTA EH2/EH3
** PLC DELTA ขนาดเล็ก เหมาะสำหรับงานควบคุมทั่วไป
The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series. It provides larger program capacity and data registers for more demanding and complex applications.
Specifications Excellent Motion Control
High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3)
Supports max. 4 hardware 200kHz high-speed counters
Increases many motion control instructions to meet the applications that require high-speed and high-precision
positioning control such as labeling machines, packaging machines and printing machines
Offers linear / arc interpolation motion control
Provides up to 16 external interrupt pointers
Complete Program Protection
Auto backup function to prevent losing programs and data even when the battery runs out
Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
Up to 4-level password protection protects your source programs and intellectual property Outstanding Operation Performance
CPU + ASIC dual processors support floating point operations
The max. execution speed of basic instructions is able to reach 0.24μs.
CPU + ASIC dual processors support floating point operations
Flexible Function Extension Modules & Cards
The multiple selections of extension modules and function cards provide analog I/O, temperature measurement, additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available.
PLC-Link
C-Link allows the user to link up a max. 32 units to the network without having to install extra communication extension modules.
Brand-New High-Speed Extension Modules
The brand-new extension modules greatly shorten the data transmission time among the PLC and its extension modules as well as enhance the efficiency of the PLC program.
CPU + ASIC dual processors support floating point operations
CPU + ASIC dual processors support floating point operations
CPU + ASIC dual processors support floating point operations
CPU + ASIC dual processors support floating point operations CPU + ASIC dual processors support floating point operations CPU + ASIC dual processors support floating point operations
