หน้าหลัก > Motor & Gear > Mitsubishi

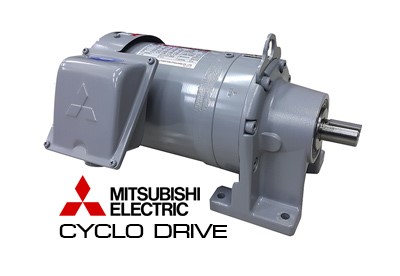

MOTOR GEAR MITSUBISHI


มอเตอร์เกียร์ CYCLO DRIVE

Series : Three Phase GearMotor
Model : MITSUBISHI CNHM
( 1/2HP - 10HP ) 3สาย
มอเตอร์เกียร์ ( Motorgear ) MITSUBISHI รุ่น CYCLO DRIVE CNHM

Description

แบบ Horizontal Type ขายึด 3PHASE  แรงดันไฟ 380V ขนาดตั้งแต่ 1/2HP - 10HP อัตราทดตั้งแต่ 1:6 - 1:43
1/2HP - 5HP
( L ) 220/380V 3PHASE , 7.5HP - 10HP ( H ) 380/660V 3PHASE

Cyclo's unique epicycloidal design has advantages superior to speed reducers that use common involute tooth gears. Cyclo components operate in compression, not in shear.
Unlike gear teeth with limited contact points, a Cyclo has two-thirds of its reduction components in contact at all times. This design enables Cyclo speed reducers and gearmotors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications

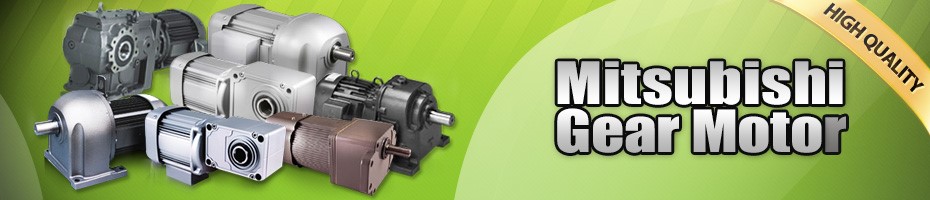

MITSUBISHI MET-TGD

Series : Three Phase Gear Motor
Model : MITSUBISHI MET-TGD(Aluminum Frame)
( 1/2HP - 3HP ) 3สาย

Description

มอเตอร์เกียร์ ( Motorgear ) MITSUBISHI รุ่น MET-TGD แบบ Horizontal Type ขาตั้ง 3PHASE  แรงดันไฟ 380V ขนาดตั้งแต่ 1/2HP - 3HP อัตราทดตั้งแต่ 1:3 - 1:60
1/2HP - 3HP    ( L ) 220/380V 3PHASE


MITSUBISHI SF-JRGD

Series : Three Phase Gear Motor
Model : MITSUBISHI SF-JRGD(Steel Frame)
( 5HP - 10HP ) 3สาย

Description

มอเตอร์เกียร์ ( Motorgear ) MITSUBISHI รุ่น SF-JRGD แบบ Horizontal Type ขาตั้ง 3PHASE  แรงดันไฟ 380V
ขนาดตั้งแต่ 5HP - 10HP อัตราทดตั้งแต่ 1:3 - 1:60
5HP - 10HP (L)( H ) 220/380,380/4150V 3PHASE

Standard series with industry-leading constant-torque range features
Even the standard series. Which does not use a constant torque motor.
realizes a wide range of torque features when used with the Mitsubishi Inverter.
For Inverter drives, select from geared motor series

Compact and lightweight
The Mitsubishi geared motor is compact and lightweight thanks to an aluminum frame. This and a wide array of variations make it possible support different application.

Reducing noise
Noise is reduced through high-precision.
CBN processing (after hardening) of the first gear and through high-precision
or grinding of the second gear (MET-TGD),(SF-JRGD). Decreases brake and percussive noise.

Compact and lightweight
The Mitsubishi geared motor is compact and lightweight thanks to an aluminum frame and Steel frame.
This and a wide array of variations make it possible support different application.
