SP5000 stores the documents you always use to the Smart Portal so that you can utilize them. Use manuals and troubleshooting guides that you already have as they are, without special instruction screens, to drastically cut design man-hours.

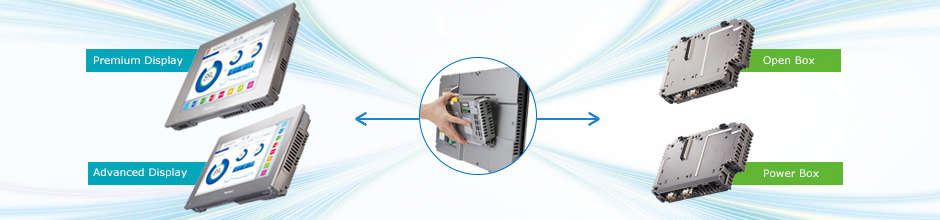

HMI Proface Display Module x Box Module

Screen Size	Product Name	Multi- touch	Windows Apps	Application Memory	Video/ Sound	CFast	SD	USB Type A	USB mini B	SIO	Ether -net	Rated Voltage	Availability of Customization	Details
15" (XGA) 360°View	SP-5700TP + SP-5B41	Yes	Yes	64 MB （CFast Card）	Yes	x 2	x 1	x 4	x 2	x 2	x 2	24 Vdc	Coating: Yes Color: Yes
	SP-5700TP + SP-5B10		-	64 MB （SD Card）	-	-	x 2	x 3
12" (XGA) Wireless LAN Model 360°View	SP-5660TP + SP-5B41		Yes	64 MB （CFast Card）	Yes	x 2	x 1	x 4
12" (XGA) 360°View	SP-5600TP + SP-5B41
	SP-5600TP + SP-5B10		-	64 MB （SD Card）	-	-	x 2	x 3
10" (SVGA) 360°View	SP-5500TP + SP-5B41		Yes	64 MB （CFast Card）	Yes	x 2	x 1	x 4
	SP-5500TP + SP-5B10		-	64 MB （SD Card）	-	-	x 2	x 3
12"Wide  (WXGA) 360°View	SP-5600WA + SP-5B41	-	Yes	64 MB （CFast Card）	Yes	x 2	x 1		x 1
	SP-5600WA + SP-5B10		-	64 MB （SD Card）	-	-	x 2	x 2
10"Wide  (WXGA) 360°View	SP-5500WA + SP-5B41		Yes	64 MB （CFast Card）	Yes	x 2	x 1	x 3
	SP-5500WA + SP-5B10		-	64 MB （SD Card）	-	-	x 2	x 2
7"Wide  (WVGA) 360°View	SP-5400WA + SP-5B41		Yes	64 MB （CFast Card）	Yes	x 2	x 1	x 3
	SP-5400WA + SP-5B10		-	64 MB （SD Card）	-	-	x 2	x 2



Bezel Color



Front Color	Black	Off-white	Beige	Silver
Front Panel	Black （PANTONE 432C）	Off-white （PANTONE Cool Gray 1C）	Beige （PANTONE 7535C）	Silver （PANTONE 8401C）
Front Bezel	Black	Standard（Silver）	Standard（Silver）	Standard（Silver）

Coating

Peace of mind in a harsh environment. "Coated models" feature more protection from corrosion.

Extended product lifetime for use in harsh environments compared to uncoated products. Corrosion resistance is also improved.



Display Module

Display Type	Product Name	Model No.	Display Size	Touch Panel Type	Details
Premium	SP-5700TP	PFXSP5700TPD	15"	Resistive Film (analog, multi-touch)	Datasheet（PDF）(link is external)
	SP-5660TP	PFXSP5660TPD	12"
	SP-5600TP	PFXSP5600TPD	12"
	SP-5500TP	PFXSP5500TPD	10"
Advanced	SP-5600WA	PFXSP5600WAD	12"Wide	Resistive Film (analog)
	SP-5500WA	PFXSP5500WAD	10"Wide
	SP-5400WA	PFXSP5400WAD	7"Wide

Box Module

Box Type	Product Name	Model No.	Application Memory	Backup Memory	Ethernet	SIO	Windows Application	Details
Open	SP-5B41	PFXSP5B41	64MB （CFast Card）	NVRAM 320 KB	x 2	x 2	Yes
	SP-5B40 (End of Sale: Mar. 30, 2018)	PFXSP5B40
Power	SP-5B10	PFXSP5B10	64 MB （SD Card）				-



SP5000 Series Model
