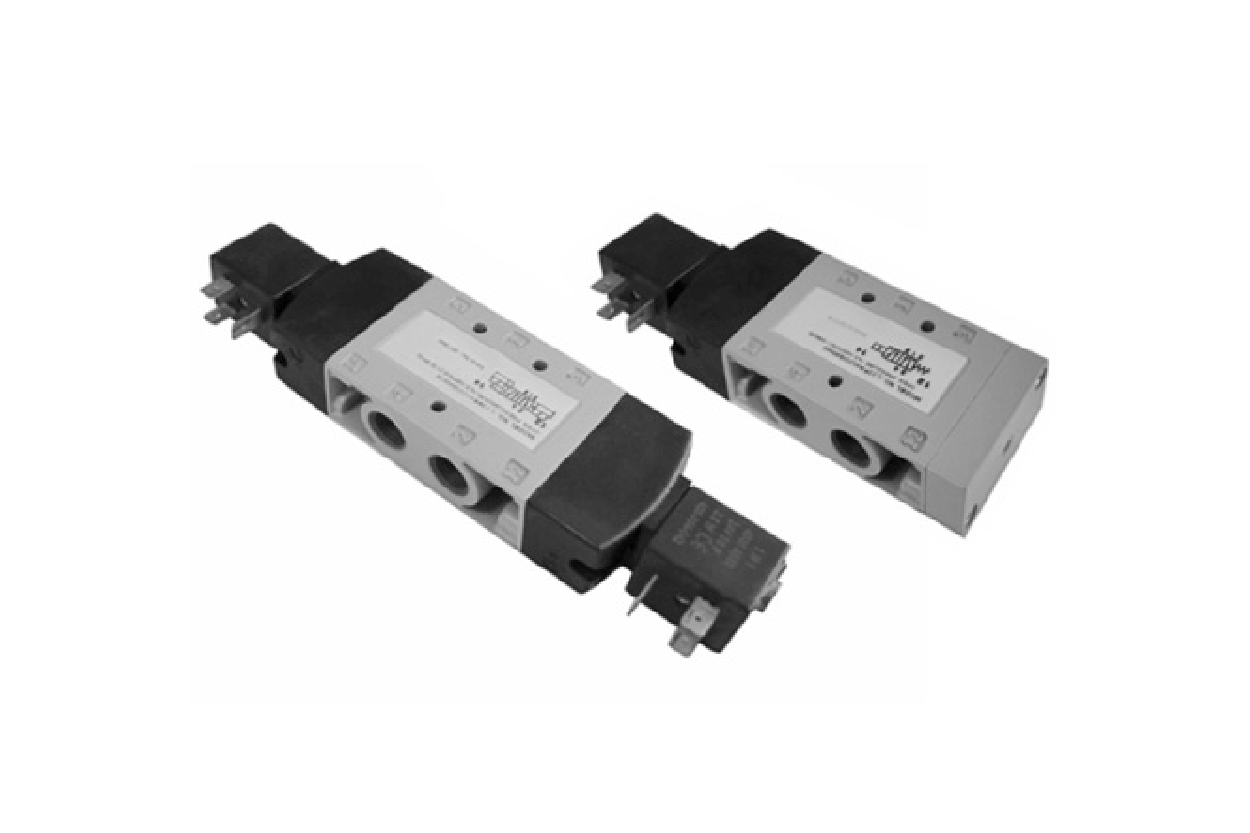

The Series YA / YB & J3 valve with classical Numatics stainless steel spool and sleeve design and offers CVs from 1 up to 2.5 and port size from 1/8 to 1/2. Low power design and multiple voltages available. YA/YB series valves come with a wide variety of options for 22mm epoxy coils.

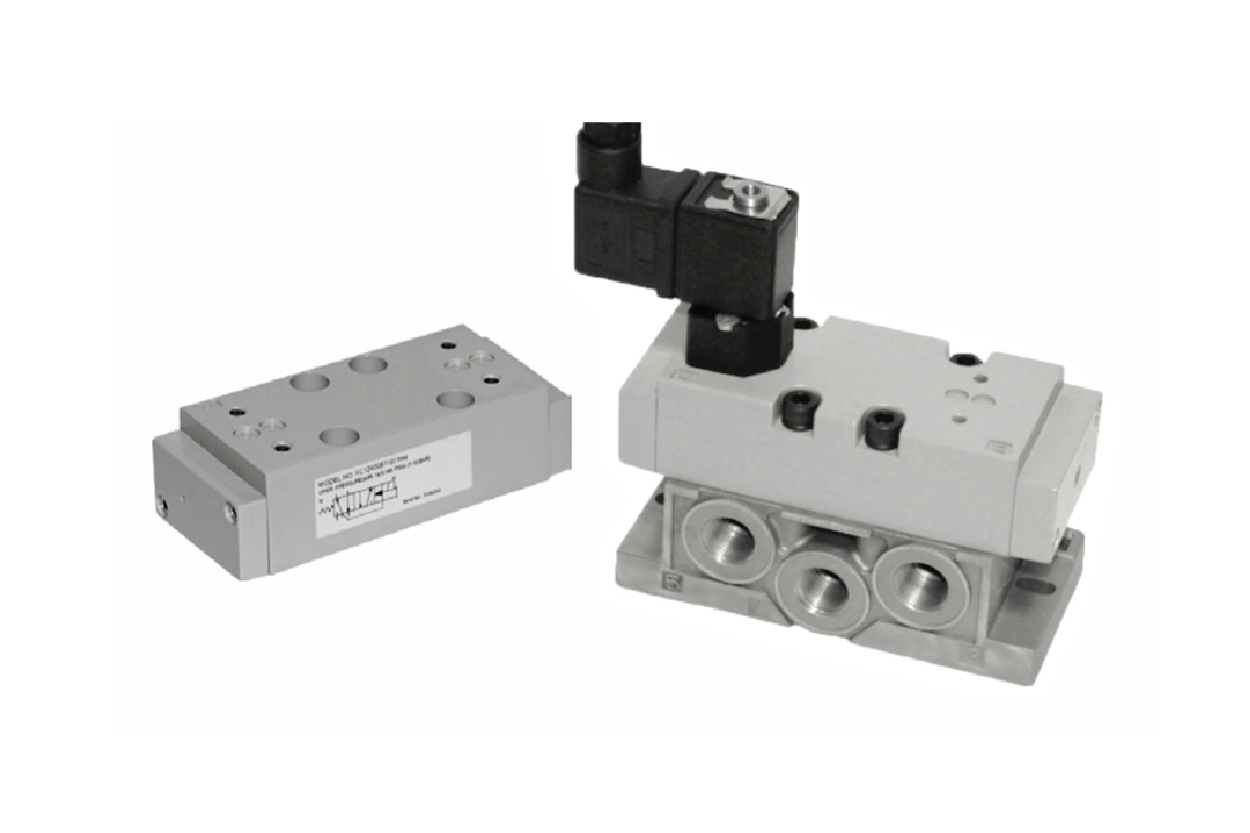

The Series C is a multi-function compact spool valve designed to ISO 5599/1 standard. This 5-ported, 2 and 3 position valve has a lapped spool and sleeve assembly and is available in AC or DC. Cv up to 5.3

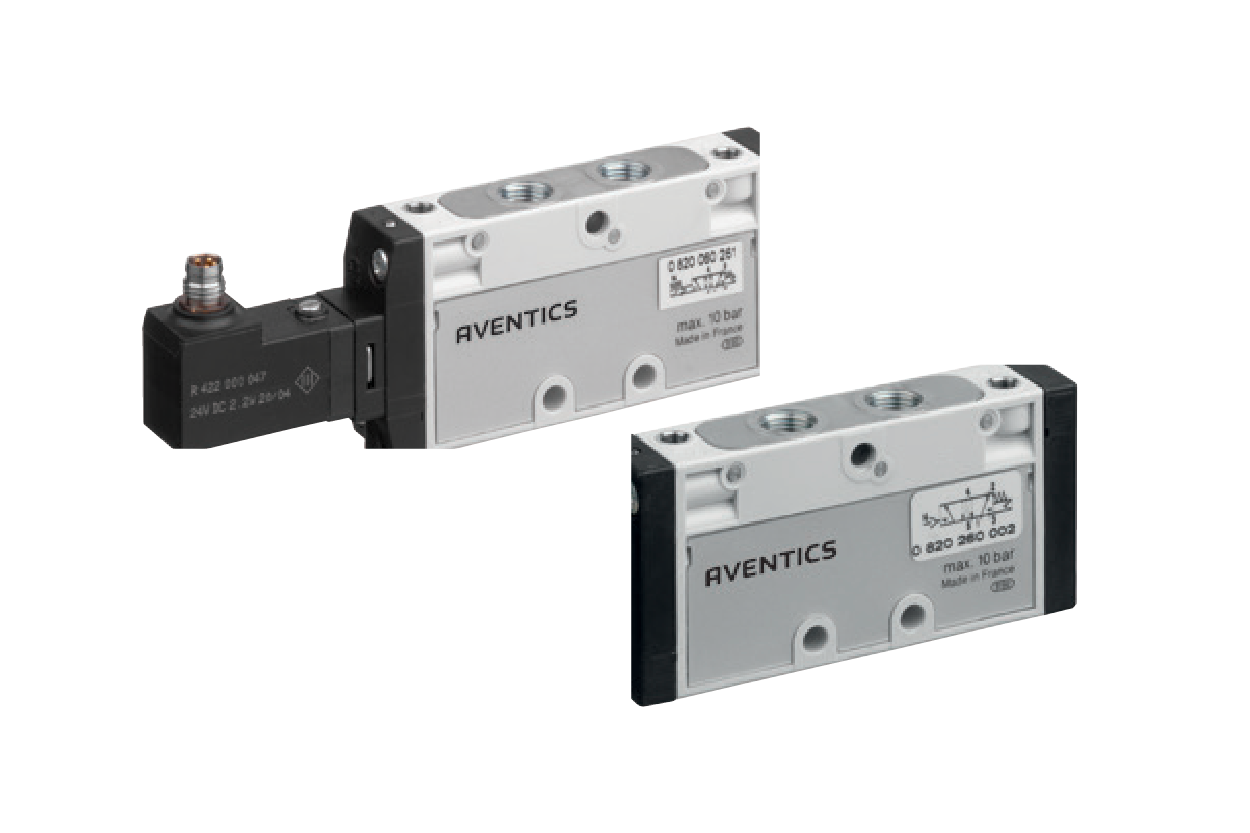

TC series single valves consist of two size variants, TC08 and TC15, with flow rates of 800 and 1,500 l/min respectively. The valves can be operated both pneumatically and electrically. In addition, they are extremely easy to install. They offer flexible electrical and pneumatic connection options and can be mounted to practically any level surface via through holes.
The CD series is available in three sizes as electrically, pneumatically, and mechanically operated valves. They are extremely robust and reliable, even in harsh working environments. The valves are even designed and approved for use in declared danger zones as they are resistant to mechanical loads, extreme temperature differences, and electrical voltage fluctuations.

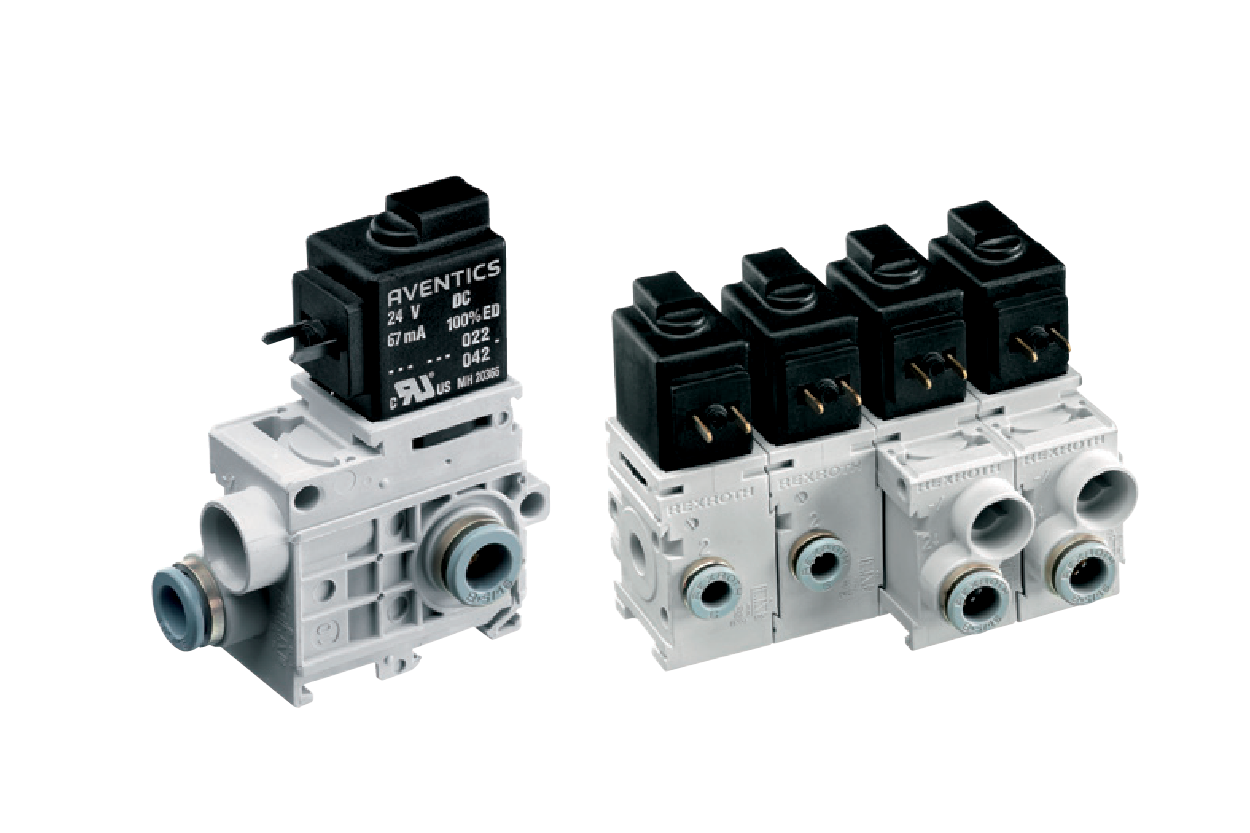

The 579 series offers users an especially cost-optimized 3/2 or 5/2 directional valve solution with poppet valve technology. They provide many integrated functions and can also be assembled into valve blocks.

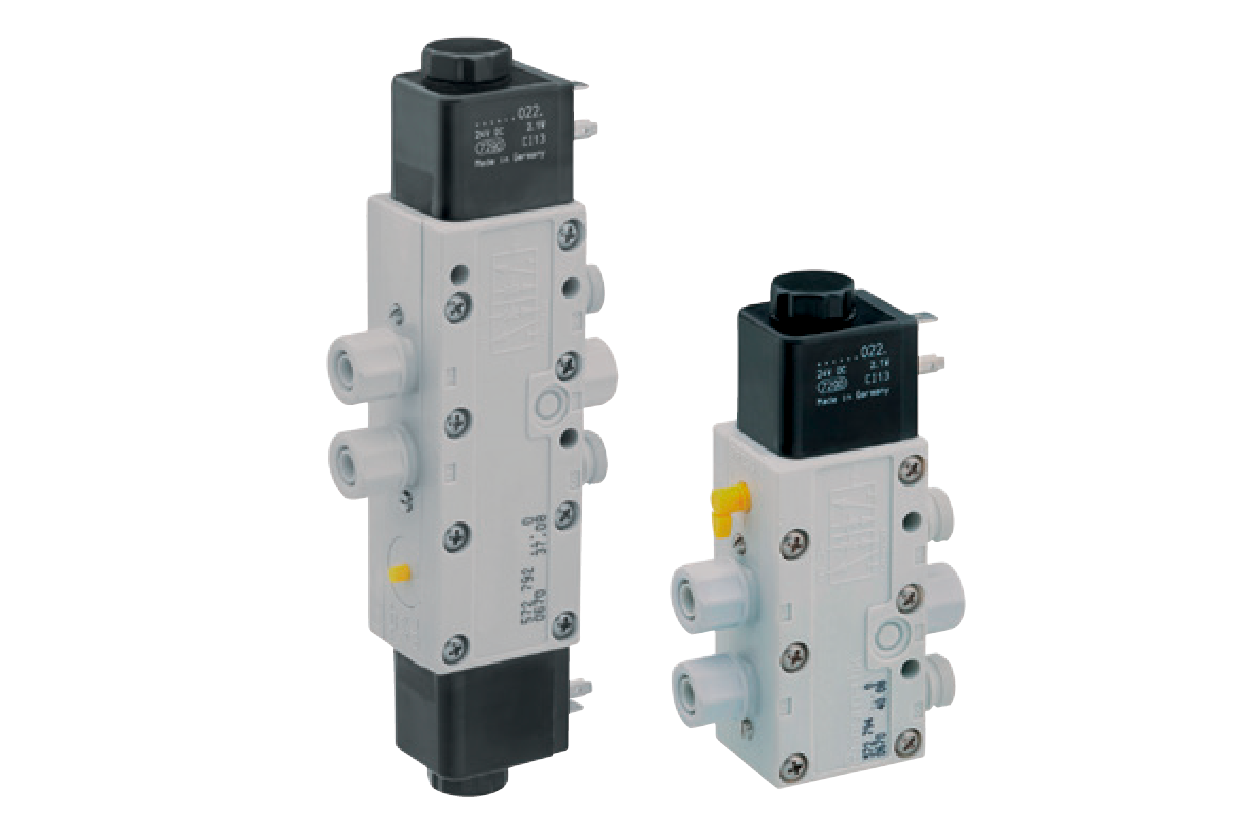

These series of valves are extremely robust and work without any problems, even with poor air quality and under tough conditions, thanks to their robust plastic housing and integrated diaphragm technology.

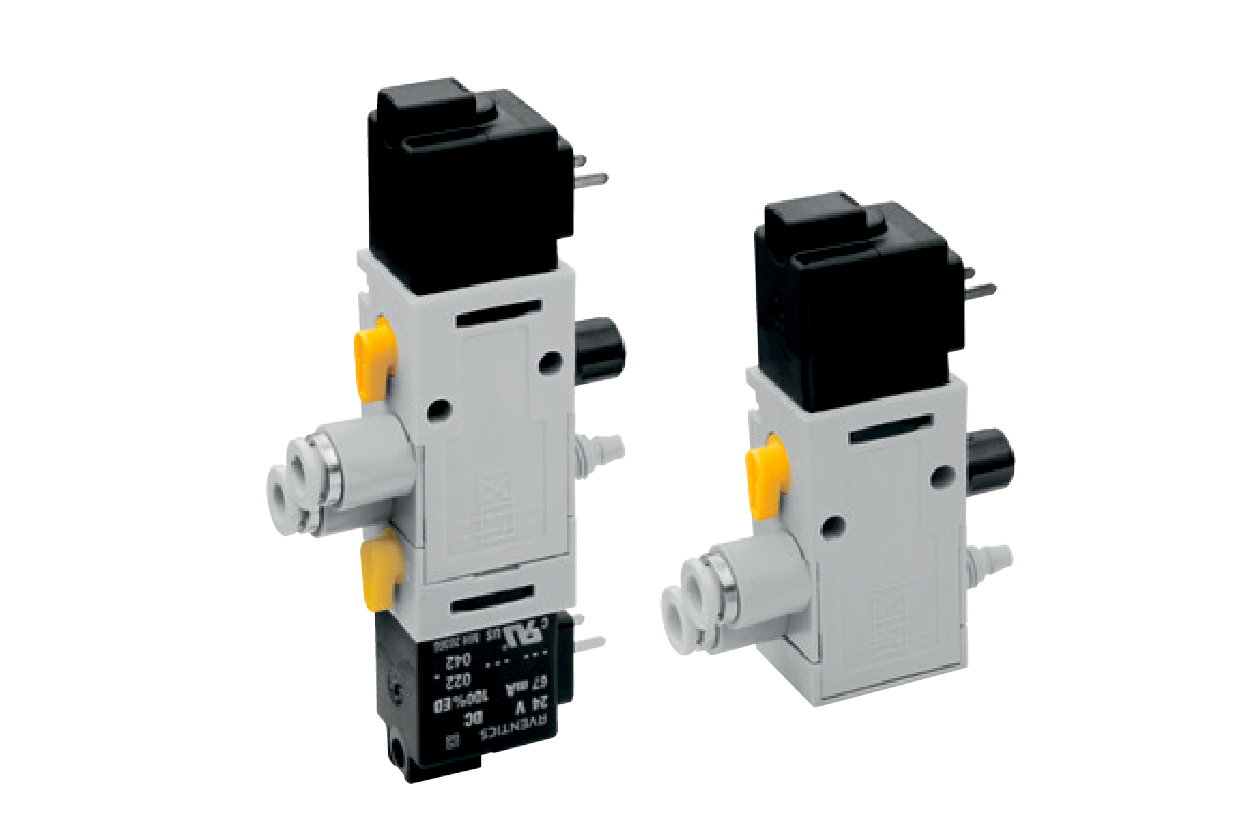

These series of valves are extremely robust and work without any problems, even with poor air quality and under tough conditions, thanks to their robust plastic housing and integrated diaphragm technology.
