Harting System Cabling & Interface Connectors

M8 A-coded system cables

Ideal for miniaturized applications

The over-molded M8 system cables are perfect for industrial cabling. The M8 A-coded mating face requires up to 30% less space than a conventional M12 A-coded mating face, making it particularly suitable for miniaturized applications. The system cables are available in unshielded and shielded versions.

• miniaturized and robust design for IP65/67 environments
• 30% smaller than the M12 mating face
• 3-, 4-, and 8-pole mating faces
• straight and angled variants
• unshielded and shielded versions
• available with different sheathing materials: including PVC and PUR

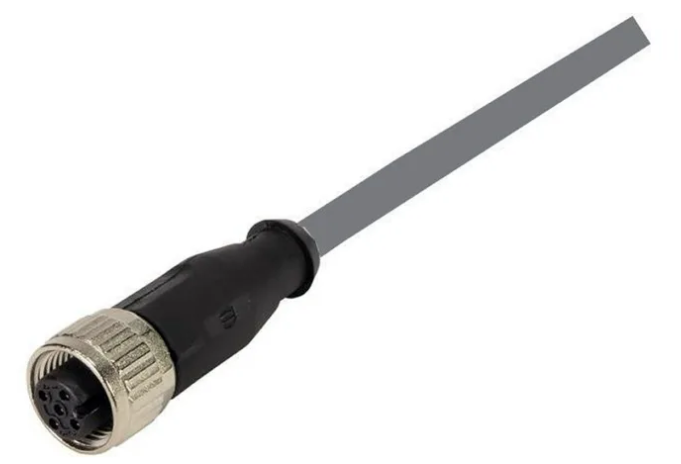

M12 A-coded system cables

Ideal for signal transmission

The over-molded M12 system cables are perfect for industrial cabling. The M12 A-coded system cables are available in 3- to 12-pole variants. All system cables are available in unshielded and shielded versions.

• robust design for IP65/67 environments
• 3-, 4-, 8-, 12-pole mating faces
• straight and angled variants
• unshielded and shielded versions
• available with different sheathing materials: including PVC and PUR

M8 Circular connectors

• Typical application: Signal / Ethernet connections for sensors & actuators
• Coding A, D, P
• 3 - 8 poles
• Han® PushPull locking system

At the field level, M8 circular connectors are typically used for I/O boxes and other space-saving devices. Their compact size makes them the ideal connector when transmitting signals and data in demanding IP65/67 environments.

M12 Circular connectors

• Typical applications
• Signals (A, B coding), 2 – 12 poles
• Data (D, X coding), 4 and 8 poles
• Power (L, S, K coding) 3 and 4 poles + FE/PE, up to 16 A / 630 V
• Hybrid (Y coding) 4 + 4 poles for data and power

M12 circular connectors are one of the most widely used sizes for circular connectors. The M12 size is available in coding variants for all industrial lifelines
– for power, signals and data. IP65/67 protected and packaged in a rugged metal housing, they provide a completely reliable connection when used in demanding applications.

M23

• Typical applications
• Signals 6-19 poles
• Capacity 6 – 9 poles
• Hybrid
• Screw locking and bayonet rapid locking system (ComLock)

M23 circular connectors are used in industrial applications when high power must be transmitted or many signal contacts must be bundled. They are typically used for drives.

7/8"

• Typical applications: Power supply for drives
• 2 - 5 poles
• 7/8" is a typical interface for connecting power supplies to diverse applications.

Han® F+B connectors for the food industry

• Typical applications: Machines & Aggregates in food production
• Easy-to-clean design especially for the spray zone
• Food and beverage industry

The Han F+B is a circular connector designed to meet the special challenges of the food industry. The connection features extra protection against water jets from cleaning equipment and resistance to cleaning agents.

HARAX panel feed through

• Typical application: Low costpower connection for lamps, drives, devices etc.
• Easy and tool-free installation with HARAX® termination technique
• Thanks to IP67 suitable for use in outdoor and humid areas

The HARAX panel feed through can be connected without tools. The panel feed through can be installed quickly and easily, thus establishing a reliable device connection.

PushPull plug connectors

• All-purpose use for data, signal and power
• Device integration to the PCB
• Thermoplastic or metal hoods/housings
• IP65 / IP67
• Intuitive locking mechanism

D-Sub Connectors

• D-sub standard, D-Sub waterproof, D-Sub mixed and D-Sub filter
• Available in multiple termination techniques
• The proper contact coating to suit any requirement
• Contact spacing 2.54 mm / 2.84 mm

RJ Industrial® Multifeature

• Very robust full metal housing
• Wide range IDC for solid and stranded wires from AWG 26 to AWG 22
• No side cutter needed anymore – integrated cutting blades behind the IDC contacts cut the wires to the correct length
• Very robust and patent pending cable fixing
• 35° + 90° angled version with variable cable outlet in 4 different cable outlet directions
