HMI Operator Panels
Graphite™ and G3 Series of
Advanced Operator Panels

Humen Machine Interface (HMI)
From factories to extreme remote location, Red Lion'sHMI solutions allow customers to easily connect, Monitor and control their processes across a broadrange of industries that include manufacturing, oil andgas and water/watewater. Our new Graphite seriesprovides the industry's first rugged HMI solution tocombine a wide range of flexible plug-in modules withprotocol conversion, data logging and web-basedmonitor and control ,Available in eight differentmodels with sizes ranging from 7" to 15", Graphite'ssleek bezels provide a relatively large displaygiven their overall dimension.

G3 Series HMIs


G303M, G303S,
G306A,G306M, G306MS
G308A2, G308C1
G310C2,G310R2, G310S2
G315C2
Display type 3.2" graphic monochorme LCD with yellow backlight 5.7" TFT dynamic matrix,256 color QVGA display, monochromatic model can be used G308A : 8.4" TFT32000 color 3 G308C : 7.5" TFT32000 color TFT10.4" TFT32000 color G310C/G310S: VGA G310R : SVGA 32000 color XGA LCD display
High brightness Only G303S Only G306S None Only G310S None
keypad Programmable 32 keys mode Programmable 5 keys mode Programmable 7 keys mode Programmable 8 keys mode Programmable 10 keys mode
Solution (pixel)
128x64
320x240
640x480
G340,G310S : 640x480,G310R : 800x600
1024 x 768
Communication port
Two RS-232, one standard RS-422/485, optional card can be used for expansion (all are isolated ports except,G303, G306A, G306M, G306MS and G308C)
Two RS-232,two RS-422/485 Extensible isolated ports
Ethernet
10 Base-T/100 Base-TX (G3xxx230 series have 2 ports)
Compact Flash Slot
Yes
USB divice and USB host port Only USB device Only USB device G308A : Yes G308C : Only USB device Yes Yes
Power Supply
24VDC +/-20%
Dimensions 5.85" x7.45"x2.1" (148.6X189.2X52mm) 7.08"x8.83"x2.3" (179.8x224.3x58mm)
Protocol conversion Yes Yes Yes Yes Yes
Data Logging
User-programmable rates, with time/date stamp and security management, data synchronization, PLC and alarm trigger
Web/FTP server
Remote access and control, access logging data via FTP or Web Browser, transfer programming ,notification and alarm, HTML page automatically fill
Software
Free Red Lion Crimsorf software with free upgrade and support, drag and drop data mapping, free device drive program, support multiple languages, 4000+ graphics library
Optional card
CANopen, J1939, DeviceNetTM,PROFIBUS DPTM,RS232/485 expansion, GSM/FRPS modem
Grade
NEMA 4X/IP66
Approve
UL CLASS I,Div 2

Optional G3 Expansion Cards :
  • CANopen (Model G3CN)
  • RS-232/485 (Model G3RS, one per additionalindependent port has one
  • DeviceNetTM (Model G3DN)
  • PROFIBUS™DP™ (Model G3PB)
  • GSM/GPRS cellular modem (ModelG3GSM)
  • J1939



G3 Kadet™ series HMI
G3 Kadet HMIs are ideal for many applications that don't require data logging while offeringthe high performance and features of the G3 Series

G304K
G306K
4.3" TFT 256 color  HD1080/16  display
4.3" TFT 256 color  HD1080/16  display
Not applicable
Only touch screen
480x272
320x234

One RS-232  One RS-422/485 ports

One RS-232 Two RS-422/485 ports
Not applicable
10 Base-T
None
Yes
None
None
12-28 VDC
12-24 VDC
4.016"x5.039"1.262"  (102x128x32mm)
5.91"x8.03"x1.57" (150x204x40mm)
Yes
Yes
Not applicable
Not applicable
Free Red Lion Oimsor®software with free upgrade and support
Not applicable
NEMA  4/IP65
UL listed



Graphite Series HMIs
If you have an outdoor application, No problem, we have a Graphite model for you.Both the 7" and 10" sizes are available with a sunlight readable display and UV protective overlay,providing one of the easiest to read HMIs on the market. Add our wide temperaturerange and rugged shock and vibration specs and you have the perfect combination foryour next outdoor application.

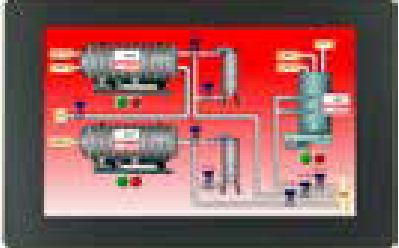

G07
G09
G10
G12
G15
Display Type
Sunlight Readable
Outdoor model available
Outdoor model abailable
Resolution
800 x 480
800 x 480
600 x 480 High Res Model 800 x 600
1280 x 800
1024 x 768
Comms Ports
3
3
3
3
3
SD Card Slot
Yes
Yes
Yes
Yes
Yes
USB Device and USB Host
USB Device and 2 Hight Retension USB Host
Power Supply
+24 VDC +/-20%
Dimensions
196 x 140 mm.
256 x 164 mm.
275 x 218 mm.
307 x 208 mm.
356 x 281 mm.
Protocol Conversion
Yes
Yes
Yes
Yes
Yes
Data Logging
Yes
Yes
Yes
Yes
Yes
Web/FTP Server
Yes
Yes
Yes
Yes
Yes
Software
Red Lion Crimson software with free upgrades and support : drag-and-drop data mapping,free device drivers, multi-language support, 4000+ graphics  library included
Module Slots
5
6
7
8
8
Ratings
NEMA  4X/IP66
Temperature
-20° - 60° C
Certifications
See website for durrent fertifications
