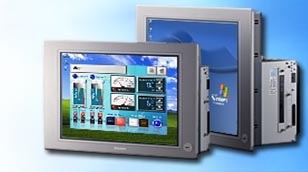

A rugged, high-performance Industrial Personal Computer

PS-4800, PS-4700
  • 19" or 15" TFT Color LCD
  • CPU: CoreTM2 Duo P8400 or AtomTM N270
  • "Slide-in slot" for quick & easy storage expansion
  • Intelligent fan control (CoreTM2 Duo P8400 type only)

  • 19" Industrial Personal Computer

    PS-4800
    Graphics: SXGA (1,280 x 1,024)
    Power Consumption: 130W or less
    Type 0 Slot 1 Slot 2 Slots
    Specification Specification Specification
    Expantion slots None PCI x1 PCI x1
    PCI Express x1
    CPU CoreTM2 Duo P8400 AtomTM N270 CoreTM2 Duo P8400 AtomTM N270 CoreTM2 Duo P8400 AtomTM N270
    (2.26GHz) (1.6GHz) (2.26GHz) (1.6GHz) (2.26GHz) (1.6GHz)
    RAM DDR3 DDR2 DDR3 DDR2 DDR3 DDR2
    (2 to 8GB) *1 (1 to 3GB) (2 to 8GB) *1 (1 to 3GB) (2 to 8GB) *1 (1 to 3GB)
    OS Windows XP Windows XP Windows XP Windows XP Windows XP Windows XP
    Window 7 *2 WES 2009 *3 Window 7 *2 WES 2009 *3 Window 7 *2 WES 2009 *3
    WES 2009 *3   WES 2009 *3   WES 2009 *3
    WES 7 *3   WES 7 *3   WES 7 *3
    Slide-in Disk (HDD or SSD) x1
    Slide-in Slot None (HDD or SSD or DVD-RW) x1
    I/F (common) COM x2, LAN x2, USB x5, CF Card x1, DVI-I x1, Sound (Line in/out, mic input)
    I/F (option) COM x1
    UPS x1 (DC Power model only)
    Cooling method Fan Fanless Fan Fanless Fan Fanless
    Rated Input Voltage AC100 to 240V or DC24V

    15" Industrial Personal Computer

    PS-4700
    Graphics: XGA (1,024 x 768)
    Power Consumption: 130W or less
    Type 0 Slot 1 Slot 2 Slots
    Specification Specification Specification
    Expantion slots None PCI x1 PCI x1
    PCI Express x1
    CPU CoreTM2 Duo AtomTM N270 CoreTM2 Duo AtomTM N270 CoreTM2 Duo AtomTM N270
    (2.26GHz) (1.6GHz) (2.26GHz) (1.6GHz) (2.26GHz) (1.6GHz)
    Main Memory DDR3 DDR2 DDR3 DDR2 DDR3 DDR2
    (2 to 8GB) *1 (1 to 3GB) (2 to 8GB) *1 (1 to 3GB) (2 to 8GB) *1 (1 to 3GB)
    OS Windows XP Windows XP Windows XP Windows XP Windows XP Windows XP
    Window 7 *2 WES 2009 *3 Window 7 *2 WES 2009 *3 Window 7 *2 WES 2009 *3
    WES 2009 *3   WES 2009 *3   WES 2009 *3
    WES 7 *3   WES 7 *3   WES 7 *3
    Slide-in Disk (HDD or SSD) x1
    Slide-in Slot None (HDD or SSD or DVD-RW) x1
    I/F (common) COM x2, LAN x2, USB x5, CF Card x1, DVI-I x1, Sound (Line in/out, mic input)
    I/F (option) COM x1
    UPS x1 (DC Power model only)
    Cooling method Fan Fanless Fan Fanless Fan Fanless
    Rated Input Voltage AC100 to 240V or DC24V


    Low-profile, Lightweight, Low-power Consumption Embedded model
    PS-4700 (Z510)
    15" TFT Color LCD
    CPU: AtomTM Z510
    Start up from CF Card
    Fanless operation
    Low power consumption (36W)


    Low-profile, Lightweight, Low-power Consumption Embedded model

    PS-4700 (Z510 model)
    Graphics: XGA (1,024 x 768)
    Power Consumption: 36W or less


    Type 0 Slot
    Specification
    Expantion slots None
    CPU AtomTM Z510 (1.1GHz)
    Main Memory DDR2 (1~2GB)
    OS Windows Embedded Standard 2009
    Slide-in Disk None
    Slide-in Slot None
    I/F (common) COM x1, LAN x1, USB x3, CF Card x1
    I/F (option) LAN x1
    Cooling method Fanless
    Rated Input Voltage DC24V

    Built-in Computer

    PS-4000B

    Can be installed remotely from FP3000 Series through DVI cable connection
    CPU: CoreTM2 Duo P8400 or AtomTM N270
    "Slide-in slot" for quick & easy storage expansion
    Intelligence Fan (CoreTM2 Duo P8400 model only)



    Built-in Computer

    PS-4000B
    Graphics: Up to 2,048 x 1,536 (QXGA)
    Power Consumption: 90W (Core 2 Duo) / 60W (Atom) or less


    Type 1 Slot 2 Slots 5 Slots
    Specification Specification Specification
    Expantion slots PCI x1 PCI x1 PCI x2
    PCI Express x1 PCI Express x3
    CPU CoreTM2 Duo AtomTM N270 CoreTM2 Duo AtomTM N270 CoreTM2 Duo
    (2.26GHz) (1.6GHz) (2.26GHz) (1.6GHz) (2.26GHz)
    Main Memory DDR3 DDR2 DDR3 DDR2 DDR3
    (2 to 8GB) *1 (1 to 3GB) (2 to 8GB) *1 (1 to 3GB) (2 to 8GB) *1
    OS Windows XP Windows XP Windows XP Windows XP Windows XP
    Window 7 *2 WES 2009 *3 Window 7 *2 WES 2009 *3 Window 7 *2
    WES 2009 *3   WES 2009 *3   WES 2009 *3
    WES 7 *3   WES 7 *3   WES 7 *3
    Slide-in Disk (HDD or SSD) x1
    Slide-in Slot None (HDD or SSD or DVD-RW) x1 (HDD or SSD or DVD-RW) x2 *4
    I/F (common) COM x2, LAN x2, USB x5, CF Card x1, DVI-I x1, Sound (Line in/out, mic input)
    I/F (option) COM x1 COM x1
    UPS x1 DVI-D x1
      UPS x1
    Cooling method Fan Fanless Fan Fanless Fan
    Rated Input Voltage DC24V


    Dependability
    Disk-less System for Secure Operation
    SSD or CF Card with Embedded OS ensures stable operation even in locations subject to vibration or shock.

    For longer CF Card life, we recommend
    saving log data to another storage device

    Longer Life of Parts
    A large-size heat sink and intelligent fan control reduce load on the parts.*
    * Fan-less model with lower operating noise and heat generation is also available.



    Dependability
    Easily Replaceable HDD Drive
    The cartridge type HDD/SSD allows easy replacement.


    Compatibility
    Reusing the Resources of the HMI
    With the runtime engine WinGP, screens created in the HMI Screen Editor & Logic Programming Software GP-Pro EX can be used on a PC.


    Industrial Touch Monitor
    PS-4000B supports FP3000 Series, Pro-face flat panel display, with DVI-RGB conversion cable. (only RGB connection is accepted)
