Features
Advanced sensorless vector control at ultra low speed

- Excellent control performance with all machines thanks to the
improvement of torque characteristics at low speed
- Sensorless vector control : 200% or greater at 0.5Hz

Excellent response speed and torque control performance

- Quick response to a sudden load change is realized
- Strong torque restriction function to protect the machine

Improved PID control performance

- CBuilt in PID function uniformly controls oil pressure and flow quantity
without additional options


Built-in regenerative braking system

- BRD regenerative circuit is built-in (5.5 ~ 22kW)

Compact size

" - Compact size of N700E series utilizes existing panel even when changing
model"

Convenient maintenance and repair

- N700E is available to replace the fan without separation
- Fan on/off function increases fan’s durability and minimizes fan’s noise

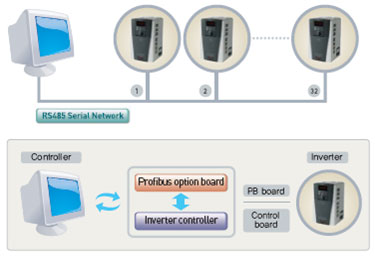

Powerful Communication Mode

- Circuit and individual terminals for RS485 / RS232C / CAN communication
- RS485 communication with mod bus-RTU protocol can control up to 32 inverters
- Profibus (Option) �Connectable with PLC/ DCS / SCADA
[Easy application thanks to supply of product profile (GSD)]
Card built-in type (does not require additional power board)

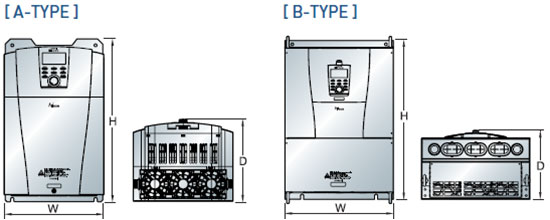

Dimension

Model
W
H
D
A N700V - 055LF/HF~110LF/HF
182
336
205
N700V - 150~220LF/HF
290
478
240
B N700V - 300LF/HF
330
580
250
N700V - 370~450LF/HF
400
610
260
N700V - 550LF/HF
440
650
271
N700V - 750, 900HF
420
740
320
N700V - 1100, 1320HF
500
780
320

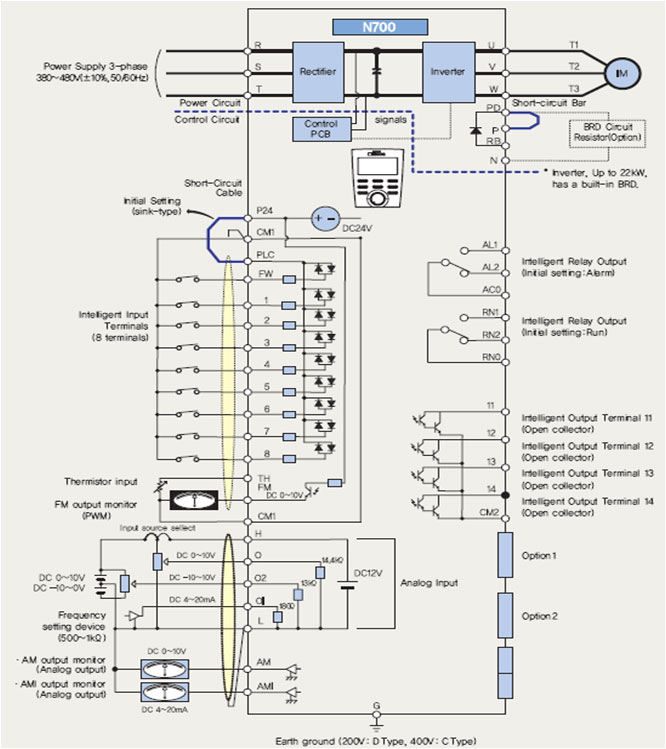

Terminal Connection Diagram


Standard Specification

Model
400V Class
N700V-055HF N700V-075HF N700V-110HF N700V-150HF N700V-185HF N700V-220HF N700V-300HF N700V-370HF N700V-450HF N700V-550HF N700V-750HF N700V-900HF N700V-1100HF N700V-1320HF
Motor capacity (kW)
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
Rated
output
Rated current (A)
12
16
23
32
38
48
58
75
90
110
149
176
217
260
Rated current (kVA)
8.3
11
15.9
22.1
26.3
33.2
41.9
50.2
63
76.2
103.2
121.9
150.3
180.1
Output voltage (V)
3-phase 380 ~ 480VAC
Output frequency range
0.1 ~ 400 Hz
Rated input Input voltage (V)
3-phase 380 ~ 480V (± 10%)
Frequency
50/60 Hz (±5%)
Power transistor
IGBT
Control method
Space vector modulation
Starting torque
200% , 0.5 Hz
Overload capacity
150% , 1min
Analog input command
DC 0 ~ 10V , DC -10 ~ +10V , DC 4-20mA
Weight (kg)
7
7
7
15
15
15
25
37
37
51
70
70
90
90

N700V Series Type

Motor (kW)
5.5
7.5
11
15
18.5
22
30
37
45
55
75
90
110
132
3-phase 400V
