  Drive > Hyundai > N50 | N100 | N500 | N700V | N700E | N5000


Features

Minimized size

- Economical installation space
- LCD display operator installation
- Parameter download function
- Proper words on the display to improve readability

Internal PID control function

- Control PID value such as flow, velocity, etc. by internal PID control function

More convenient user interface

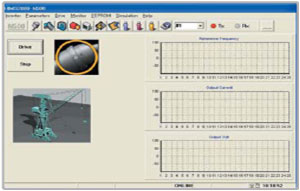

- MMI using RS-485 communication
- Parameter values display & remote setting function
- Pretest by simulation function according to the load classification





· Improved troubleshooting
- Trace date save function for the specified time during trip to advance maintenance function



Dimension

Model
W
H
D
N500 - 1600HF
620
1000
380
N500 - 2200HF
620
1000
380
N500 - 2800HF
800
1130
380
N500 - 3500HF
800
1130
380
N500 - 3200HFP
800
1130
380
N500 - 3800HFP
800
1130
380

Standard Specification

Model
Standard
Fan,Pump only
N500-1600HF
N500-2200HF
N500-2800HF
N500-3500HF
N500-3200HFP
N500-3800HFP
Rated output Motor capacity (kW)
160
220
280
350
320
380
Rated current (A)
304
418
525
656
616
732
Overload capacity
150% , 1min
120% , 1min
Rated output voltage
3-phase 380 ~ 480VAC (± 10%) , 50/60 Hz (Complying with input voltagel)
Output voltage method
Space vector PWM
Control method
V/F control , sensorless vector control , sensored vector control
Staring torque
200% , 0.5 Hz
Output frequency range
0.1 ~ 400Hz
Digital I/O
Multi-function digital input 8 channel , multi - function open collector output 5 channel , multi-function C control output 2 channel
Analog I/O
Voltage / current output 2 channel , pulse output 1 channel
Analog input command
DC 0 ~ 10V , DC -10 ~ +10V , DC 4-20 mA
Weight (kg)
185
185
215
215
215
215

N500 Series Type

Standard Fan , Pump only Motor (kW)
160
220
280
320
350
380
3-phase 200V
3-phase 200V
