Features
• Vector inverter for single phasing input only

- High torque of 200% or greater at speed as low as 1Hz during starting and operation

• Realize tripless driving by adding current suppression

- Stable operation even under the instantaneous impact load and overload is
realized through the addition of over-current level adjusting function."
- Maintain constant speed even at the time of sudden load change by rapid speed restoration zzzcharacteristics.
- Applicable to the transfer machine, treadmill, industrial washing machine
due to its function of momentary current suppression"

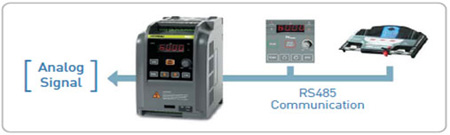

• Possible to select various operation method
- It is possible to select the operation method of either RS485 communication
driving or analog signal driving for the user’s convenience."



· Compact size for easy installation
- Reduction in cubic volume, 52% compare to the N100 series.
· Develop optional product for user convenience
- DOP05: Economical remote operator, Operation & display function

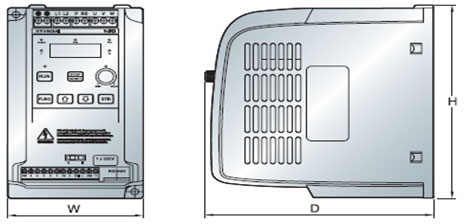

Dimension

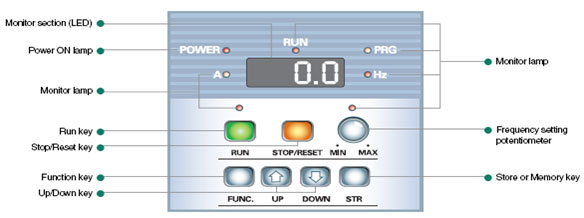

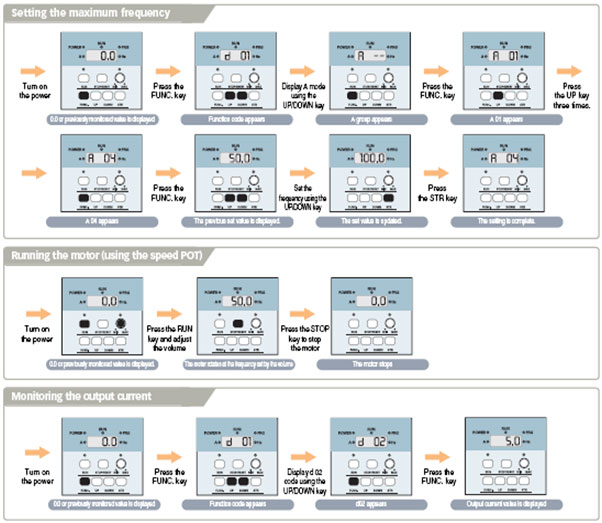

"The N50 series inverter can be easily operated with the standard digital operator panel on the main unit.
For remote operation, remote operator(DOP05) is available as an option product."
Model
W
D
H
007SF
80
142
135
015SF, 022SF
95
142
135
Standard Specification
Model
N50-007SF
N50-015SF
N50-022SF
Applicable motor capacity (kW)
0.75
1.5
2.2
output Rated output current (A)
5.0
7.0
11.0
Rated output capacity (kVA)
1.9
3
4.2
Rated output voltage (V) 3-phase , 200 ~ 230VAC
Maximum output frequency (Hz) 400 Hz
Input Voltage     /frequency Single phase, 200 ~ 230V , 50/60Hz
Power conditions Voltage: ±10% / frequency:  ±5%
Control characteristic PWM method Space vector PWM
Control method V/F control , sensorless vector control
Output frequency range 0.1~400Hz
V/F characteristics V/F free-setting (30~400Hz of base frequency) , constant torque and variable torque patten selectable
Overload rating 150% of rated current for 1 minute
Starting torque More than 200% (at 1 Hz)
Torque boost Manual torque boost can be set between 0~50%
Acceleration/            deceleration                       time setting 0.1~3000 sec
Acceleration/            deceleration                       pattern Linear , S-curve , U-curve
Current stall prevention operation level Operating current level setting possible (20~200%), enable/disable selection
Voltage stall prevention operation level Operating current level constant, enable/disable selection
Analog frequency setting DC 0~10V / 4~20mA
Protective functions Over current protection , under-voltage error , output short circuit , overload shut-off (electronic thermall , ground fault , extermal trip , communition error , EEPROM error
Environment Ambient temperature  -10~40°C (no freezing)
Ambient hurnidity 90% RH or less (non-condensing)
Storage temperature  -20~60°C (short-term temperature during transport)
Installation area Indoors without corrosive gases , flammable gases , oil mist or dust
Altitude and vibration Maximum 1000m or less above sea level , 5.9m/s2 or less
Cooling method Forced air cooling
International directive compliance CE & UL/cUL

N50 Series Type

Motor (kW)
0.75
1.5
2.2
Single-phase 200V

Option

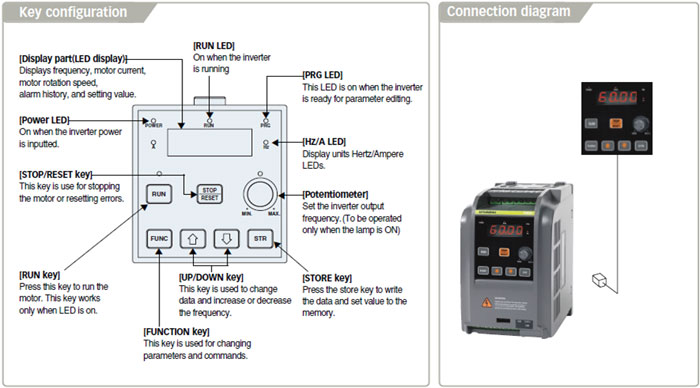

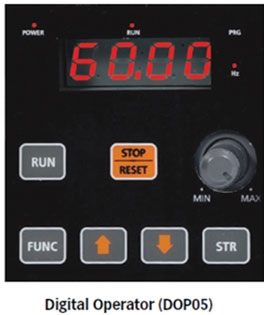

Digital Operator
- Digital operator is economical remote operator.
- Digital operator can control inverter parater parameter and operating commands.

Specification
Item Description
Model name DOP05
External dimension 67.5 mm(H) × 64.9 mm(W) × 35.1 mm(D)
Display 7-segment LED 4-digit 7-segment LED
Monitor lamp 7 (POWER/RUN/PRG/Hz/A/RUN key/Volume LED)
Keypad 7 (RUN/STOP (RESET)/FUNC/UP/DOWN/STR/Volume)
Communication method RS485 (Modular connection)
Function Inverter operation & monitoring
Connection cable length 1.5 m , 3 m
