MT6000 SERIES

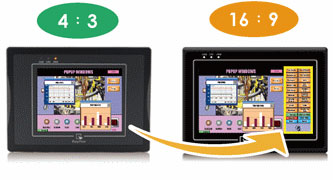

New i series generation makes a breakthrough from traditional HMI design by taking the lead in
adopting 16:9 widescreen LCD.

Under the same installation space as 5.6" display, users enjoy 35% extra screen area to configured full menu selection, place additional buttons and fulfill complicated applications.

Supporting hardware expansion via universal USB, serial and SD interfaces. By connecting printers or bar code readers users can print information based on their schedule and configuration, and with USB devices users can store data such as data log, event log and data sampling in external memory devices.
32-bit RISC Processor
MT6000 i Series offers high performance features for the industrial environment. Even the most complicated graphics can be called up in a snap.

Secure Digital Card
MT6000 i Series provide standard SD Card slot to improve the efficiency of recipe file, data logging and project downloading as well as simplify the data processing.

USB 2.0 Interface
The flexibility of USB interface enriches the functionality of MT6000i. Each MT6000 is equipped with 1 USB and 1 USB 2.0 interfaces which are not only for project download/upload and data storage but also for connection to printer, bar code reader, mouse and a variety of USB devices.

Serial Port
Each MT6000i is equipped with 3  serial ports (except for MT6050i) which can connect to 3 different PLCs/controllers simultaneously

Display:
4.3"
5.6"
7"
10"
Model:
MT 6050i
MT 6056i
MT 6070iH
MT6100i
Brightness (cd/m2):
500 cd/m2
300 cd/m2
375 cd/m2
300 cd/m2
Contrast Ratio:
600:01:00
300:01:00
500:01:00
500:01:00
Color:
65536 colors
65536
65536
65536
Resolution (WXH):
480X272
320x234
800x480
800x480
Back Light:
LED
LED
LED
LED
Back Light Life Time:
30,000 hr
30,000 hr
30,000 hr
30,000 hr
Touch Panel Type:
4-wireResistive Type
4 wires resistive type
4 wires resistive type
4 wires resistive type
Storage:
128 MB Flash
128 MB Flash
128 MB Flash
128 MB Flash
RAM (RAM):
64 MB
64 MB
64 MB
64 MB
SD Card Slot:
N/A
N/A
N/A
Yes
USB Host:
N/A
N/A
USB 1.1 x 1
USB 1.1 x 1
USB Client:
USB 2.0 X1
USB 2.0 x 1
USB 2.0 x 1
USB 2.0 x 1
Ethernet Port:
N/A
N/A
N/A
N/A
COM Port:
COM1 (RS232, RS485, 2W/4W)
COM1 (RS232 / RS485 2W/4W)
COM1(RS232 / RS485 2W/4W)
COM1(RS232 / RS485 2W/4W),COM2(RS232)
COM3(RS232/RS485 2W)
Audio:
N/A
N/A
N/A
N/A
Input Power:
24 ±20% VDC
24 ±20% VDC
24 ±20% VDC
24 ±20% VDC
Power Consumption:
250mA
250mA@24VDC
250mA@24VDC
300mA@24VDC
RTC:
N/A
Built-in
Built-in
Built-in
Panel Cutout (WXH):
119X93mm
192x138mm
192x138mm
259x201mm
Weight (KG):
0.3kg
Approx 0.85kg
Approx 0.85kg
Approx 1.4kg
Voltage Resistance:
500 VAC (1 min)
500 VAC (1 min)
500 VAC (1 min)
500 VAC (1 min)
Isolation Resistance:
Exceed 50MΩ at 500 VDC
Exceed 50MΩ at 500 VDC
Exceed 50MΩ at 500 VDC
Exceed 50MΩ at 500 VDC
Vibration Endurance:
10 to 25 Hz (X,Y,Z direction 2G 30minutes)
10 to 25 Hz (X,Y,Z direction 2G 30minutes)
10 to 25 Hz (X,Y,Z direction 2G 30minutes)
10 to 25 Hz (X,Y,Z direction 2G 30minutes)
Protection Structure:
IP65 front panel (O ring seal)
IP65 front panel (O ring seal)
IP65 front panel (O ring seal)
IP65 front panel (O ring seal)
Storage Temperature:
-20°~60°C (-4°~140°F)
-20°~60°C (-4°~140°F)
-20°~60°C (-4°~140°F)
-20°~60°C (-4°~140°F)
Operating Temperature:
0°~45°C (32°~113°F)
0°~45°C (32°~113°F)
0°~45°C (32°~113°F)
0°~45°C (32°~113°F)
Operation Humidity:
10-90% RH (non-condense)
10-90% RH (non-condense)
10-90% RH (non-condense)
10-90% RH (non-condense)

Ordering
MT 6050i 4.3” 480x272 TFT LCD, 65536-color, 128MB
MT 6056i 5.6” 480x234 TFT LCD, 65536color, 128MB
MT 6070iH 7” 800x480 TFT LCD, 65536-color, 128MB
MT 6100i 10” 800x480 TFT LCD, 65536-color, 128MB, SD Slot
