Powerdrive F300 features


Comprehensive options for flexibility


Keypad type*

Description
KI-HOA Keypad RTC: Removable plain text LCD with Realtime clock The KI-HOA Keypad RTC provides Hand-Off-Auto control. The display presents up to four lines of real text with multi-language translation, enhancing clarity and increasing ease of use. A battery operated Realtime clock allows accurate time stamping of diagnostics and aids quick fault resolution.
Remote Keypad Remote mountable, plain text, multi-language LCD keypad allows flexible mounting on
the outside of a panel and meets IP66 (NEMA 4).
System Integration Modules - Communications
SI-PROFIBUS PROFIBUS interface module PROFIBUS-DP (Decentralized Peripheral) interface module enables follower connectivity. It is possible to use more than one SI-PROFIBUS or acombination of SI-PROFIBUS and other option modules to add additional functionality such as extended I/O, gateway functionality, or additional PLC features
SI-DeviceNet DeviceNet networking system interface module enables follower connectivity. It is possible to use more than one SI-DeviceNet or a combination of SI-DeviceNet and other option modules to provide additional functionality such as extended I/O, gateway functionality, or additional PLC features
SI-CANopen CANopen interface module supporting various profiles, including several drive profiles
SI-Ethernet External Ethernet module that supports PROFINET RT, EtherNet/IP and Modbus TCP/IP and has an integrated web server that can generate emails. The module can be used to provide high speed drive access, global connectivity and integration with IT network technologies, such as wireless networking
SI-PROFINET RT PROFINET RT interface module provides fast, high-precision communications for maximum plant productivity. Dual port cable connection ensures rapid and easy installation.
System Integration Modules - Additional I/O
SI-I/O Extended I/O interface module to increase the number of I/O points on a drive. Provides additional: 4 x Digital I/O, 3 x Analog inputs (default)/Digital inputs, 1 x Analog output (default)/Digital input, 2 x Relays
Smartcard The optional Smartcard memory device can be used to back-up parameter sets and basic PLC programs, as well as copying them from one drive to another
SD Card Adaptor Conversion device that allows an SD card to be inserted into the Smartcard slot, for parameter cloning and application programs
Drive interface units - Communications
CT USB Comms Cable The CT USB Comms cable allows the drive to connect to a PC for use with Powerdrive F300 Connect - the latest drive configuration tool for commissioning, optimizing and monitoring drive/ system performance



Drives and motors technology

Drives and Controllers

AC drives for Process Control

Powerdrive F300
Powerdrive MD2
Flexible drive, easily adaptable to your particular application requirements 1.1 kW to 2.8 MW (1.5 – 4,200 hp) 6, 12 and 18 pulse and AFE
Ready to use wall mount or free-standing drive 45 kW to 2.8 MW (60 – 4,200 hp)6, 12 and 18 pulse and AFE
Motors
General purpose permanent magnet motors
General purpose asynchronous motors
Asynchronous motor with integrated drive
Dyneo® range
IMfinity® and LS motor range
Varmeca
Premium efficiency PM synchronous motors with drive. IP55 & IP23. IE3 & IE40.75 - 550 kW (1 - 750 hp) 375 - 5,500 rpm
High and premium efficiency motors for fixed and variable speed 0.06 - 1,800 kW (0.8 - 2,500 hp) Non IE, IE2, IE3 derivative ranges (Atex, Nuclear, High temp, liquid cooled and customized versions)
For variable speed applications Fit to standard gears0.25 - 11 kW (0.33 - 15 hp) IP65



Powerdrive F300 ratings and specification

200/240 Vac ±10%
Normal Duty

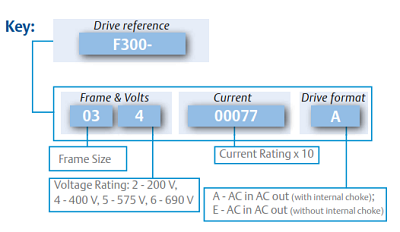

Drive
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (hp)
F300-03200066A10
6.6
1.1
1.5
F300-03200080A10
8
1.5
2
F300-03200110A10
11
2.2
3
F300-03200127A10
12.7
3
3
F300-04200180A10
18
4
5
F300-04200250A10
25
5.5
7.5
F300-05200300A10
30
7.5
10
F300-06200500A10
50
11
15
F300-06200580A10
58
15
20
F300-07200750A10
75
18.5
25
F300-07200940A10
94
22
30
F300-07201170A10
117
30
40
F300-08201490A10
149
37
50
F300-08201800A10
180
45
60
F300-09202160A10
216
55
75
F300-09202660A10
266
75
100
F300-09202160E10
216
55
75
F300-09202660E10
266
75
100
F300-10203250E10
325
90
125
F300-10203600E10
360
110
150

500/575 Vac ±10%
Normal Duty
Drive
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (hp)
F300-05500039A10
3.9
2.2
3
F300-05500061A10
6.1
4
5
F300-05500100A10
10
5.5
7.5
F300-06500120A10
12
7.5
10
F300-06500170A10
17
11
15
F300-06500220A10
22
15
20
F300-06500270A10
27
18.5
25
F300-06500340A10
34
22
30
F300-06500430A10
43
30
40
F300-07500530A10
53
37
50
F300-07500730A10
73
45
60
F300-08500860A10
86
55
75
F300-08501080A10
108
75
100
F300-09501250A10
125
90
125
F300-09501550A10
155
110
150
F300-09501250E10
125
90
125
F300-09501500E10
150
110
150
F300-10502000E10
200
130
200

380/480 Vac ±10%
Normal Duty
Drive
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (hp)
F300-03400034A10
3.4
1.1
1.5
F300-03400045A10
4.5
1.5
2
F300-03400062A10
6.2
2.2
3
F300-03400077A10
7.7
3
5
F300-03400104A10
10.4
4
5
F300-03400123A10
12.3
5.5
7.5
F300-04400185A10
18.5
7.5
10
F300-04400240A10
24
11
15
F300-05400300A10
30
15
20
F300-06400380A10
38
18.5
25
F300-06400480A10
48
22
30
F300-06400630A10
63
30
40
F300-07400790A10
79
37
50
F300-07400940A10
94
45
60
F300-07401120A10
112
55
75
F300-08401550A10
155
75
100
F300-08401840A10
184
90
125
F300-09402210A10
221
110
150
F300-09402660A10
266
132
200
F300-09402210E10
221
110
150
F300-09402660E10
266
132
200
F300-10403200E10
320
160
250
F300-10403610E10
361
200
300

500/690 Vac ±10%
Normal Duty
Drive
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (hp)
F300-07600230A10
23
18.5
25
F300-07600300A10
30
22
30
F300-07600360A10
36
30
40
F300-07600460A10
46
37
50
F300-07600520A10
52
45
60
F300-07600730A10
73
55
75
F300-08600860A10
86
75
100
F300-08601080A10
108
90
125
F300-09601250A10
125
110
150
F300-09601500A10
150
132
175
F300-09601250E10
125
110
150
F300-09601550E10
155
132
175
F300-10601720E10
172
160
200
F300-10601970E10
197
185
250


Powerdrive F300 ratings and specification

Normal Duty operation only
Suitable for fan, pump and compressor applications, with a current
overload requirement of 110%.

Conformance

•  IP20 / NEMA1 / UL TYPE 1
* UL open class as standard, additional kit needed to achieve Type 1
•  IP65 / NEMA4 / UL TYPE 12 rating is achieved on the rear of the drive when through panel mounted
* Frame size 9D, 9E, 10D and 10E achieve IP55 / NEMA 4 / UL Type 12
•  Ambient temperature -20 °C to 40 °C as standard. Up to 55 °C with
* Frame size 9D, 9E, 10D and 10E achieve IP55 / NEMA 4 / UL Type 12
•  Ambient temperature -20 °C to 40 °C as standard. Up to 55 °C with derating
•  Humidity 95 % maximum (non-condensing) at 40 °C
•  Altitude: 0 to 3000m, derate 1 % per 100 m between 1000 m and 3000 m
•  Random Vibration Tested in accordance with IEC 60068-2-64
•  Bump Tested in accordance with IEC 60068-2-29
•  Sinusoidal Vibration Tested in accordance with IEC 600068-2-6
•  Mechanical Shock Tested in accordance with IEC 60068-2-29
•  Storage temperature -40 °C to 55 °C or up to 70 °C for short-term storage
•  Electromagnetic Immunity complies with EN 61800-3 and EN 61000-6-2
•  With onboard EMC filter, emissions comply with EN 61800-3 (category C3)
•  EN 61000-6-3 and EN 61000-6-4 with optional footprint EMC filter
•  IEC 60146-1-1 Supply conditions (category C1 or C2 depending on rating)
•  IEC 61800-5-1 (Electrical Safety)
•  IEC 61131-2  I/O
•  EN 61000-3-12 with optional line reactor
•  UL 508C (Electrical Safety)



Dimensions
and Weight

Frame Size
3
4
5
6
7
Dimensions
(H x W x D)
mm
382 x 83 x 200 391 x 124 x 200 391 x 143 x 200 391 x 210 x 227 557 x 270 x 280
in
15.0 x 3.3 x 7.9 15.4 x 4.9 x 7.9 15.4 x 5.6 x 7.6 15.4 x 8.3 x 8.9 21.9 x 10.6 x 11.0
Weight
kg(lb)
4.5 (9.9) 6.5 (14.3) 7.4 (16.3) 14 (30.9) 28 (61.7)


Frame Size
8
9A
9E/10E
9D/10D
Dimensions
(H x W x D)
mm
803 x 310 x 290 1108 x 310 x 290 1069 x 310 x 290 Rectifier 355 x 310 x 290
Inverter773 x 310 x 290
in
31.6 x 12.2 x 11.4 43.6 x 12.2 x 11.4 42.1 x 12.2 x 11.41 Rectifier15.8 x 12.2 x 11.4
Inverter30.4 x 12.2 x 11.4
Weight
kg(lb)
50 (110.2) 66.5 (146.6) 46 (101.4)




Panel mount retrofit kits

Flush fit multiple drives via through hole mounting

Frame size
Order code
4
3470-0062
5
3470-0066
6
3470-0074
7
3470-0078
8-10
3470-0118


Option Modules



Tile mount kits


Option Module
Order code

Frame size
Order code
SI-PROFIBUS
82400000017500

3
3470-0049
SI- Ethernet
82400000017900

4
3470-0060
SI-DeviceNet
82400000017700

5
3470-0073
SI-CANopen
82400000017600

SI-PROFINET RT
82400000018200

SI-I/O
82400000017800



General kit items

Item
Order code
Keypad blanking cover (10 pieces in pack)
3470-0058
Frame size 3 & 4 power connector split kit
3470-0064





Optional external EMC filters

Unidrive M built-in EMC filter complies with EN 61800-3. External EMC filters are required for compliance with EN 61000-6-4.

Frame size
Voltage
Order code
3
200 V
4200-3230
400 V
4200-3480
4
200 V
4200-0272
400 V
4200-0252
5
200 V
4200-0312
400 V
4200-0402
575 V
4200-0122
6
200 V
4200-0312
400 V
4200-0402
575 V
4200-0122
7
200 V
4200-1132
400 V
4200-1132
575 V
4200-0672
690 V
4200-0672
8
200 V
4200-1972
400 V
4200-1972
575 V
4200-1662
690 V
4200-1662
9A
200 V
4200-3021
400 V
4200-3021
575 V
4200-1660
690 V
4200-1660
9E &10E
200 V
4200-4460
400 V
4200-4460
575 V
4200-2210
690 V
4200-2210
