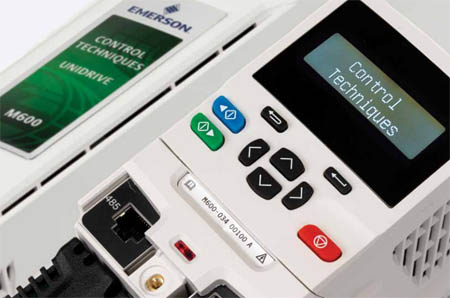

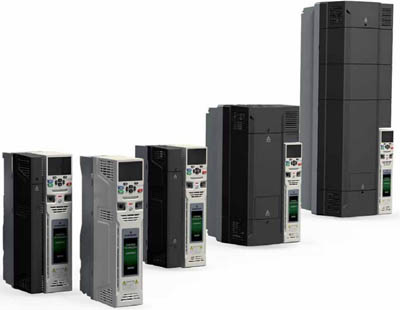

Inverter Emerson : Unidrive M600 AC drive

Unidrive M600 AC drive - High performance drive for induction and sensorless permanent magnet motors
- 0.75 kW – 1.2 MW (1.0 - 1600 hp)
- 200 V / 400 V / 575 V / 690 V

  • M600 adds enhanced motor control, higher performance onboard PLC with CODESYS programming and greater system expansion capability

  • M600 delivers increased machine performance with sensorless induction and sensorless permanent magnet motor control, for dynamic and efficient machine operation. An optional encoder port can be used for precise closed loop velocity applications and digital lock/frequency following. Additional I/O, global fieldbus communications and encoder feedback options maximize system connectivity and flexibility.

    Features

    Enhanced onboard PLC

    • Onboard CODESYS based PLC with a real-time task can be used for basic logic control, speed following and digital lock to enhance drive application capability

    Maximize productivity with high performance control with all AC motors

    • Advanced RFC control algorithm for maximum stability and control, especially with high power motors
    • High bandwidth motor control algorithm with 62.5 μs current loop update rates
    • 200% motor overload for heavy industrial machinery applications

    Save energy

    • High performance control of open loop energy efficient industrial permanent magnet motors , with dynamic control and high starting torque
    • Low losses up to 98% efficient
    • Low power standby mode

    Reduce machine size and cost

    • Compact drive dimensions, among the smallest in class at every power rating
    • Onboard programmable automation for simple applications

    Flexible integration with automation systems

    • Fit up to three SI modules to add speed feedback, I/O and fieldbus communications

    Easy-to-use interface

    • Optional plain text LCD keypad with up to 4 lines of text

    Typical applications

    • Speed control with high starting torque for extruders, slitters, material transport, compressors, manufacturing cranes, hydraulic replacement, ratio control, gearing, winding (coilers), web handling, metal cutting



    Unidrive M600 ratings and specifications

    200/240 Vac ± 10%
    Drive Heavy Duty Normal Duty
    Max Continuous Motor Shaft Motor Shaft Max Continuous Motor Shaft Motor Shaft
    Current (A) Power (kW) Power (HP) Current (A) Power (kW) Power (HP)
    M600-03200050A 5 0.75 1 6.6 1.1 1.5
    M600-03200066A 6.6 1.1 1.5 8 1.5 2
    M600-03200080A 8 1.5 2 1.1 2.2 3
    M600-03200106A 10.6 2.2 3 12.7 3 3
    M600-04200137A 13.7 3 3 18 4 5
    M600-04200185A 18.5 4 5 24 5.5 7.5
    M600-05200250A 25 5.5 7.5 30 7.5 10
    M600-06200330A 33 7.5 10 50 11 15
    M600-06200440A 44 11 15 58 15 20
    M600-07200610A 61 15 20 75 18.5 25
    M600-07200750A 75 18.5 25 94 22 30
    M600-07200830A 83 22 30 117 30 40
    M600-08201160A 116 30 40 149 37 50
    M600-08201320A 132 37 50 180 45 60
    M600-09201760A* 176 45 60 216 55 75
    M600-09202190A* 219 55 75 266 75 100
    M600-09201760E 176 45 60 216 55 75
    M600-09202190E 219 55 75 266 75 100
    M600-10202830E 283 75 100 325 90 125
    M600-10203000E 300 90 125 360 110 150

    380/480 Vac ± 10%
    Drive Heavy Duty Normal Duty
    Max Continuous Motor Shaft Motor Shaft Max Continuous Motor Shaft Motor Shaft
    Current (A) Power (kW) Power (HP) Current (A) Power (kW) Power (HP)
    M600-034 00025A 2.5 0.75 1 3.4 1.1 1.5
    M600-034 00031A 3.1 1.1 1.5 4.5 1.5 2
    M600-034 00045A 4.5 1.5 2 6.2 2.2 3
    M600-034 00062A 6.2 2.2 3 7.7 3 5
    M600-034 00078A 7.8 3 5 10.4 4 5
    M600-034 00100A 10 4 5 12.3 5.5 7.5
    M600-044 00150A 15 5.5 10 18.5 7.5 10
    M600-044 00172A 17.2 7.5 10 24 11 15
    M600-054 00270A 27 11 20 30 15 20
    M600-054 00300A 30 15 20 30 15 20
    M600-064 00350A 35 15 25 38 18.5 25
    M600-064 00420A 42 18.5 30 48 22 30
    M600-064 00470A 47 22 30 63 30 40
    M600-074 00660A 66 30 50 79 37 50
    M600-074 00770A 77 37 60 94 45 60
    M600-074 01000A 100 45 75 112 55 75
    M600-084 01340A 134 55 100 155 75 100
    M600-084 01570A 157 75 125 184 90 125
    M600-09402000A* 200 90 150 221 110 150
    M600-09402240A* 224 110 150 266 132 200
    M600-09402000E 200 90 150 221 110 150
    M600-09402020E 224 110 150 266 132 200
    M600-10402700E 270 132 200 320 160 250
    M600-10403200E 320 160 250 361 200 300

    500/575 Vac ± 10%
    Drive Heavy Duty Normail Duty
    Max Continuous Typical Output Motor Power Max Continuous Typical Output Motor Power
    Current (A)  (kW)  (HP) Current (A)  (kW)  (HP)
    M600-055 00030 A 3 1.5 2 3.9 2.2 3
    M600-055 00040 A 4 2.2 3 6.1 4 5
    M600-055 00069 A 6.9 4 5 10 5.5 7.5
    M600-065 00100 A 10 5.5 7.5 12 7.5 10
    M600-065 00150 A 15 7.5 10 17 11 15
    M600-065 00190 A  19 11 15 22 15 20
    M600-065 00230 A 23 15 20 27 18.5 25
    M600-065 00290 A 29 18.5 25 34 22 30
    M600-065  00350 A 35 22 30 43 30 40
    M600-075  00440 A 44 30 40 53 37 50
    M600-075  00550 A 55 37 50 73 45 60
    M600-085  00630 A 63 45 60 86 55 75
    M600-085  00860 A 86 55 75 108 75 100
    M600-095  01040 A* 104 75 100 125 90 125
    M600-095  01310 A* 131 90 125 150 110 150
    M600-095  01040 E 104 75 100 125 90 125
    M600-095  01310 E 131 90 125 150 110 150
    M600-105  01520 E 152 110 150 200 130 200
    M600-105  01900 E 190 132 200 200 150 200

    500/690 Vac ± 10%
    Drive Heavy Duty Normail Duty
    Max Continuous Typical Output Motor Power Max Continuous Typical Output Motor Power
    Current (A)  (kW)  (HP) Current (A)  (kW)  (HP)
    M600-076 00190 A 19 15 20 23 18.5 25
    M600-076 00240 A 24 18.5 25 30 22 30
    M600-076 00290 A 29 22 30 36 30 40
    M600-076 00380 A 38 30 40 46 37 50
    M600-076 00440 A 44 37 50 52 45 60
    M600-076 00540 A  54 45 60 73 55 75
    M600-086 00630 A 63 55 75 86 75 100
    M600-086 00860 A 86 75 100 108 90 125
    M600-096 01040 A* 104 90 125 125 110 150
    M600-096 01310 A* 131 110 150 150 132 175
    M600-096 01040 E 104 90 125 125 110 150
    M600-096 01310 E 131 110 150 155 132 175
    M600-10601500 E 150 132 175 172 160 200
    M600-10601780 E 178 160 200 197 185 250


    Heavy Duty
    Suitable for demanding applications, current overload of 180% (3s) is available for dynamic loads.

    Normal Duty
    Suitable for most application, with a current overload capacity of 110%.

    Unidrive M600 ratings and specifications

    Environmental safety and electrical conformance
    • IP20/(NEMA 1) /UL TYPE 1*
      *UL open class as standard , additional kit needed to achieve TYPE 1
    • IP65 / NEMA4/UL TYPE 12 rating is achieved on the rear of drive when through panel mounted
    • Ambient temperature -20 (-4°F) to 40°C (104 °F) as standard.
      Up to 60 °C (140 °F) with derating
    • Humidity 95 % maximum (non-condensing) at 40 °C
    • Altitude:0 to 3000 M derate 1% per 100 m (328ft) between 1000 m and 3000 m.
    • Random Vibration:Tested in accordance with IEC 60068-2-64
    • Mechanical Shock: Tested in accordance with IEC 60068-2-29
    • Storage temperature -40°C to 70°C .
    • Electromagnetic Immunity complies with EN 61800-3 and EN 61000-6-2.
    • With onboard EMC filter, complies with EN 61800-3 (2nd environment).
    • EN 61000-6-3 and EN 61000-6-4 with optional footprint EMC filter
    • IEC 60146-1 Supply conditions
    • IEC 61800-5-1 Electrical Safety.
    • IEC 61131-2 I/O
    • Safe Torque Off,independently assessed by TUV to EN61800-5-2 SIL 3 EN ISO 13849-1 Pl.
    • UL 508C ( Electrical Safety)
    Optional media and accessories
    Description Order code
    SD Card Adaptor
    Smartcard (64kB) 2214-0010


    Internal brake resistor
    Frame size  Order code
    3 1220-2752
    4&5 1299-0003


    DC bus paralleling kit
    Frame size Order code
    3 3470-0048
    4 3470-0061
    5 3470-0068
    6 3470-0063
    6 (connect to frame 3,4 & 5) 3470-0111

    UL Type 1 Conduit kit
    Frame Size Order code
    3&4 6521-0071
    5 3470-0069
    6 3470-0059
    7 3470-0080
    8 6500-0106
    9E&10 3470-0115


    Retrofit brackets
    To allow Unidrive M drives to be fitted
    in existing Unidrive SP surface mount installations
    Frame Size Order code
    4 3470-0062
    5 3470-0066
    6 3470-0074
    7 3470-0078
    8 3470-0087
    9E&10 3470-0118


    Cable gromment kit
    Frame size  Order code
    7 3470-0086
    8-Single cable 3470-0089
    8-dual cable 3470-0090
    9E&10 3470-0107

    Through hole IP65 kit
    Frame size  Order code
    3 3470-0053
    4 3470-0056
    5 3470-0067
    6 3470-0055
    7 3470-0079
    8 3470-0083
    9E&10 3470-0105
    10 Inverter 3470-0108
    10 Rectifier 3470-0106

    Tile mount kit
    Frame size Order code
    3 3470-0049
    4 3470-0060
    5 3470-0073

    General kit items
    Frame size  order code
    Keypad blanking cover (10 pieces in pack) 3740-0058
    Frame size 3&4 power connector split kit 3740-0064
    Frame 3 through hole multi-axis kit ** 3740-0065
    I/O commissioning extecder adaptor 3000-0009

    ** to allow multiple drives to be through hole mounted with no space between them.

    Optional external EMC filers
    Unidrive M built-in EMC filter complies with EN 61800 -3 (2nd environment) External EMC filters are required for compliance with EN61000-6-4.
    Frame size Voltage Order code
    3 200 V 4200-3230
    400 V 4200-3480
    4  200 V 4200-0272
    400 V 4200-0252
    5 200 V 4200-0312
    400 V 4200-0402
    575 V 4200-0122
    6 200 V 4200-2300
    400 V 4200-4800
    575 V 4200-3690
    7 200 V&400 V 4200-1132
    575 V&690 V 4200-0672
    8 200 V&400 V 4200-1972
    575V & 690 V 4200-1662
    9 200 V&400 V 4200-3021
    575V & 690 V 4200-1660
    9E & 10 200V & 400 V 4200-4460
      575 V & 690 V 4200-2210




    Unidrive M range- Identification-Part Number
    Supply Voltage Power Supply Frame DC Output Current Item number
    200V 6 Pulse 10 410 A RECT-10204100A10100A0100
    400V 6 Pulse 10 452 A RECT-10404520A10100A0100
    575V 6 Pulse 10 243 A RECT-10502430A10100A0100
    690V 6 Pulse 10 248 A RECT-10604100A10100A0100
