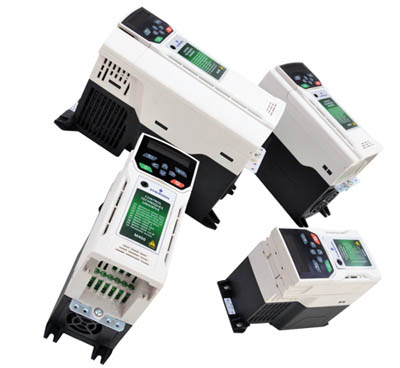

Inverter Emerson : Unidrive M400 AC drive

Unidrive M400 AC drive - Fast set-up and diagnosis with real-text display, plus integrated CODESYS based PLC
- 0.25 - 110 kW (0.33 - 150 hp)
- 100 V / 200 V / 400 V / 575 V / 690 V

  • M400 adds an optional enhanced LCD keypad, precise frequency following and onboard Programmable Logic Control (PLC)
  • Easy upgrade for existing Commander SK users with LogicStick

M400 minimizes machine downtime with its optional intuitive advanced LCD keypad which offers real-text multi-language display for rapid set-up and superior diagnostics. Onboard CODESYS based PLC with a real-time task can be used for simple logic control to enhance drive application capability.

Features

Maximize throughput while protecting people and machinery, and easily meet machine safety requirements

  • Dual STO for safety system integration , eliminating external components

Enhance productivity through integration with the automation system and reduce machine downtime

  • Optional RS485 and a wide range of fieldbus communication SI modules allow remote control and diagnostics across different networks
  • I/O can be configured to accept an encoder or frequency/direction inputs for frequency following

Reduce machine size and cost

  • Compact drive dimensions, among the smallest in class at every power rating
  • Enhanced functionality with onboard PLC programming provides a low cost solution, minimizing additional equipment such as PLCs and safety contactors.

Save energy

  • Low losses up to 98% efficient and low power standby mode

Typical applications

  • Speed control for conveyors, positive displacement pumps, material transport, cutting, woodworking, where fast diagnostics are required





Unidrive M400 ratings and specifications

100/120 Vac ± 10%
Order Code Supply Phases Heavy Duty Normal Duty
Max Continuous Motor Shaft Motor Shaft Max Continuous Motor Shaft Motor Shaft
Current (A) Power (kW) Power (HP) Current (A) Power (kW) Power (HP)
M400-011 00017 1 1.7 0.25 0.33 For Normal Duty applications, use Heavy Duty ratings.
M400-011 00024 1 2.4 0.37 0.5
M400-021 00042 1 4.2 0.75 1
M400-021 00056 1 5.6 1.1 1.5

200/240 Vac ± 10%
Order Code Supply Phases Heavy Duty Normal Duty
Max Continuous Motor Shaft Motor Shaft Max Continuous Motor Shaft Motor Shaft
Current (A) Power (kW) Power (HP) Current (A) Power (kW) Power (HP)
M400-012 00017 1 1.7 0.25 0.33 For Normal Duty applications, use Heavy Duty ratings.
M400-012 00024 1 2.4 0.37 0.5
M400-012 00033 1 3.3 0.55 0.75
M400-012 00042 1 4.2 0.75 1
M400-022 00024 1/3 2.4 0.37 0.5
M400-022 00033 1/3 3.3 0.55 0.75
M400-022 00042 1/3 4.2 0.75 1
M400-022 00056 1/3 5.6 1.1 1.5
M400-022 00075 1/3 7.5 1.5 2
M400-032 00100 1/3 10 2.2 3
M400-042 00133 1/3 13.3 3 3
M400-042 00176 3 17.6 4 5
M400-052 00250 3 25 5.5 7.5 30 7.5 10
M400-062 00330 3 33 7.5 10 50 11 15
M400-062 00440 3 44 11 15 58 15 20
M400-072 00610 3 61 15 20 75 18.5 25
M400-072 00750 3 75 18.5 25 94 22 30
M400-072 00830 3 83 22 30 117 30 40
M400-082 01160 3 116 30 40 149 37 50
M400-082 01320 3 132 37 50 180 45 60
M400-092 01760 3 176 45 60 216 55 75
M400-092 02190 3 219 55 75 266 75 100

380/480 Vac ± 10%
Order Code Supply Phases Heavy Duty Normal Duty
Max Continuous Motor Shaft Motor Shaft Max Continuous Motor Shaft Motor Shaft
Current (A) Power (kW) Power (HP) Current (A) Power (kW) Power (HP)
M400-024 00013 3 1.3 0.37 0.5 For Normal Duty applications, use Heavy Duty ratings.
M400-024 00018 3 1.8 0.55 0.75
M400-024 00023 3 2.3 0.75 1
M400-024 00032 3 3.2 1.1 1.5
M400-024 00041 3 4.1 1.5 2
M400-034 00056 3 5.6 2.2 3
M400-034 00073 3 7.3 3 3
M400-034 00094 3 9.4 4 5
M400-044 00135 3 13.5 5.5 7.5
M400-044 00170 3 17 7.5 10
M400-054 00270 3 27 11 20 30 15 20
M400-054 00300 3 30 15 20 30 15 20
M400-064 00350 3 35 15 25 38 18.5 25
M400-064 00420 3 42 18 30 48 22 30

M400-064 00470 3 47 22 30 63 30 40
M400-074 00660 3 66 30 50 79 37 50
M400-074 00770 3 77 37 60 94 45 60
M400-074 01000 3 100 45 75 112 55 75
M400-084 01340 3 134 55 100 155 75 100
M400-084 01570 3 157 75 125 184 90 125
M400-094 02000 3 200 90 150 221 110 150
M400-094 02240 3 224 110 150 266 132 200

500/575 Vac ± 10%
Drive Supply Phases Heavy Duty Normal Duty
Max Continuous Typical Output Motor Power Max Continuous Typical Output Motor Power
Current (A)  (kW)  (HP) Current (A)  (kW)  (HP)
M400-055 00030 A 3 3 1.5 2 3.9 2.2 3
M400-055 00040 A 3 4 2.2 3 6.1 4 5
M400-055 00069 A 3 6.9 4 5 10 5.5 7.5
M400-065 00100 A 3 10 5.5 7.5 12 7.5 10
M400-065 00150 A 3 15 7.5 10 17 11 15
M400-065 00190 A  3 19 11 15 22 15 20
M400-065 00230 A 3 23 15 20 27 18.5 25
M400-065 00290 A 3 29 18.5 25 34 22 30
M400-065  00350 A 3 35 22 30 43 30 40
M400-075  00440 A 3 44 30 40 53 45 50
M400-075  00550 A 3 55 37 50 73 55 60
M400-085  00630 A 3 63 45 60 86 75 75
M400-085  00860 A 3 86 55 75 108 90 100
M400-095  01040 A 3 104 75 100 125 110 125
M400-095  01310 A 3 131 90 125 150 110 150

500/690 Vac ± 10%
Drive Supply Phases Heavy Duty Normail Duty
Max Continuous Typical Output Motor Power Max Continuous Typical Output Motor Power
Current (A)  (kW)  (HP) Current (A)  (kW)  (HP)
M400-076 00190 A 3 19 15 20 23 18.5 25
M400-076 00240 A 3 24 18.5 25 30 22 30
M400-076 00290 A 3 29 22 30 36 30 40
M400-076 00380 A 3 38 30 40 46 37 50
M400-076 00440 A 3 44 37 50 52 45 60
M400-076 00540 A  3 54 45 60 73 55 75
M400-086 00630 A 3 63 55 75 86 75 100
M400-086 00860 A 3 86 75 100 108 90 125
M400-096 01040 A 3 104 90 125 125 110 150
M400-096 01310 A 3 131 110 150 150 132 175




Unidrive M300 ratings and specifications

Heavy Duty
Suitable for demanding applications, current overload of 180% (3s) is available for dynamic loads.

Normal Duty
Suitable for most application, with a current overload capacity of 110%.

Environmental safety and electrical conformance
  • Sitze 1 to 4:
  • IP21 / UL open class (NEMA 1).
    IP20 when the AI-Back-up or AI 185 Adaptors are fitted.
    UL TYPE 1 compliance requires the appropriate Conduit kit to be fitted.
  • Size 5 to 9
  • IP20/UL open class (NEMA 1).
    UL TYPE 1 compliance requires the appropriate Conduit kit to be fitted.
    IP65 / UL TYPE 12 rating is achieved on the rear of drive when through panel mounted.
  • Ambient temperature -20 (-4°F) to 40°C (104 °F) as standard. Up to 60 °C (140 °F) with derating
  • Storage temperature -40°C to 60°C ('-40 °F to 140 °F).
  • Humidity 95 % maximum (non-condensing) at 40 °C (-140 °F ) in accordance with EN/IEC 60068-2-78 and ANSI/EIA-364-31.
  • EN/IEC 60068-2-60. Method 4 Corrosive gas.
  • Altitude:0 to 3000 M ( 0 to 9343ft.), derate 1 % per 100 m (328ft) between 1000 m and 3000 m (3281 ft and 9843 ft)
  • Random Vibration:Tested in accordance with EN/IEC 60068-2-64 with SI and AI option modules fitted
  • Mechanical Shock: Tested in accordance with EN/IEC 60068-2-29
  • Electromagnetic Immunity complies with EN/IEC 61800-3 and EN/IEC 61000-6-2.
  • With onboard EMC filter, complies with EN/IEC 61800-3 (2nd environment).
  • EN/IEC 61000-6-3 and EN/ IEC 61000-6-4 with optional footprint EMC filter.
  • EN/IEC 60146-1 Supply conditions.
  • EN/IEC 61800-5-1 Electrical Safety.
  • EN/IEC 61131-2 I/O
  • Safe Torque Off,independently assessed by TUV to EN/IEC 61800-5-2 SIL 3 EN ISO 13849-1 Ple.
  • UL 508C Electrical Safety.

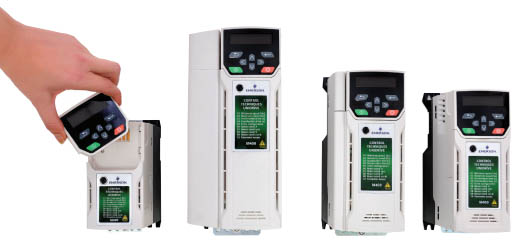

Optional keypad

Description / Order code
CI-Keypad
Remote Keypad

Optional Accessories
Description / Order code
AI-Back-up Adaptor
AI-485 Adaptor
CI-485 Adaptor

Dimension and Weight
Frame Size 1 2 3 4
Dimension   mm 137x75x130 180x75x150 200x90x160 245x115x175
(HxWxD) in 5.4x3.0x5.1 7.1x3.0x5.9 7.9x3.5x6.3 9.7x4.5x6.9
Weight kg (lb) 0.75 (1.65) 1.0 (2.2) 1.5 (3.3) 3.13 (6.9)


Notes:
Height dimension (H) does not include mounting feet on sizes 1 to 4.
Additional distance should be added to the height dimension (H) when the following option are fitted on sizes to 1-6
  • Al-Back-up Adaptor : 15 mm (0.59 in)
  • AI-485 Adaptor:26 mm (1.2 in)

  • Optional external EMC filers
    Unidrive M built-in EMC filter complies with EN/IEC 61800 -3 (2nd environment).
    External EMC filters are required for compliance with EN/IEC 61000-6-4 as per the table below.

    Frame size Voltage Phases  Type Order code
    1 All 1 Standard 4200-1000
    All 1 Low leakage 4200-1001
    2 100 V 1 Standard 4200-2000
    200 V 1 Standard 4200-2001
    1 Low leakage 4200-2002
    3 Standard 4200-2003
    3 Low leakage 4200-2004
    400 V 3 Standard 4200-2005
    3 Low leakage 4200-2006
    3 200 V 1 Standard 4200-3000
    1 Low leakage 4200-3001
    3 Standard 4200-3004
    3 Low leakage 4200-3005
    400 V 3 Standard 4200-3008
    3 Low leakage 4200-3009
    4  200 V 1 Standard 4200-4000
    1 Low leakage 4200-4001
    3 Standard 4200-4002
    3 Low leakage 4200-4003
    400 V 3 Standard 4200-4004
    3 Low leakage 4200-4005
    5 200 V 3 Standard 4200-0312
    400 V 3 Standard 4200-0402
    575 V 3 Standard 4200-0122
    6 200 V 3 Standard 4200-2300
    400 V 3 Standard 4200-4800
    575 V 3 Standard 4200-3690
    7 200 V&400 V 3 Standard 4200-1132
    690 V 3 Standard 4200-0672


    Conduit kit
    When the following kits are fitted to the drive, it meets UL Type 1.
    Frame size  Order code
    1 3470-0091
    2 3470-0094
    3 3470-0098
    4 3470-0102
    5 3470-0069
    6 3470-0059
    7 3470-0080
    8 3470-0088

    Internal brake resistor
    Frame size  Order code
    5 1299-0003


    Through hole IP65 kit
    IP65 / UL TYPE 12 rating is achieved on the rear of the drive when through panel mounted using following kits:
    Frame size  Order code
    5 3470-0067
    6 3470-0055
    7 3470-0079
    8 3470-0083


    Retrofit mounting brackets
    These mounting brackets ensure the drive can be mounted on existing Commander SK installations.
    Frame Size Order code
    3 3470-0097
    4 3470-0101
    5 3470-0066
    6 3470-0074
    7 3470-0078
    8 3470-0087

    Fan replacement kit
    Frame size Order code
    1 3470-0092
    2 3470-0095
    3 3470-0099
    4 3470-0103

    Cable grommet kit
    Frame size  Order code
    7 3740-0086
    8 3740-0089
    (Single cable)
    3740-0090
    (Dual cable)
