Inverter Emerson : Unidrive M300 AC drive

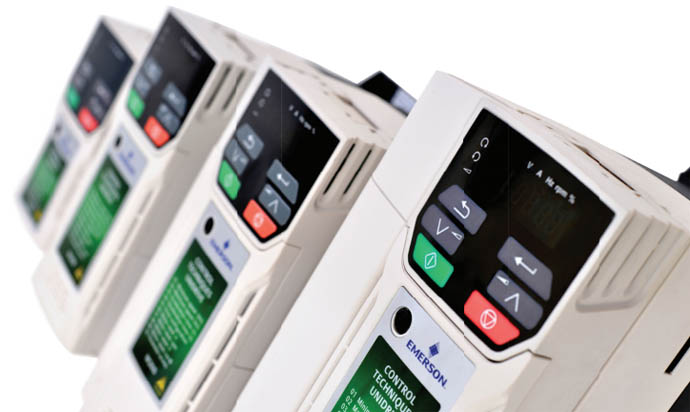

Unidrive M300 AC drive - Enhance throughput with Machine Safety
- 0.25 – 22 kW (0.33 - 30 hp)
- 100 V / 200 V / 400 V / 575 V
  • M300 adds integrated Machine Safety

  • M300 helps machine builders maximize up-time and meet modern functional safety standards. Dual onboard Safe Torque Off (STO) inputs offer easy SIL3/PLe conformity and reduce the need for external components, minimizing overall machine dimensions and costs.

    Features

    Enhance productivity through integration with the automation system and reduce machine downtime

    • Optional RS485 and a wide range of fieldbus communication SI modules allow remote control and diagnostics with different networks
    • Flexible I/O

    Quick and easy to install and configure

    • Simple fixed LED keypad as standard
    • 10 most commonly used parameters listed on front of drive

    Reduce machine size and cost

    • Compact drive dimensions, among the smallest in class at every power rating

    Save energy

    • Low losses up to 98% efficient
    • Low power standby mode

    Typical applications

    • Speed control for material transport, cutting, woodworking, machine tools; where protection to people or assets is required

    Unidrive M300 ratings and specifications

    100/120 Vac ± 10%
    Order Code Heavy Duty Normal Duty
    Supply Phases Max Continuous
    Current (A)
    Motor Shaft
    Power (kW)
    Motor Shaft
    Power (HP)
    Max Continuous
    Current (A)
    Motor Shaft
    Power (kW)
    Motor Shaft
    Power (HP)
    M300-011 00017 1 1.7 0.25 0.33 For Normal Duty applications, use Heavy Duty ratings.
    M300-011 00024 1 2.4 0.37 0.5
    M300-021 00042 1 4.2 0.75 1
    M300-021 00056 1 5.6 1.1 1.5

    200/240 Vac ± 10%
    Order Code Heavy Duty Normal Duty
    Supply Phases Max Continuous
    Current (A)
    Motor Shaft
    Power (kW)
    Motor Shaft
    Power (HP)
    Max Continuous
    Current (A)
    Motor Shaft
    Power (kW)
    Motor Shaft
    Power (HP)
    M300-012 00017 1 1.7 0.25 0.33 For Normal Duty applications, use Heavy Duty ratings.
    M300-012 00024 1 2.4 0.37 0.5
    M300-012 00033 1 3.3 0.55 0.75
    M300-012 00042 1 4.2 0.75 1
    M300-022 00024 1/3 2.4 0.37 0.5
    M300-022 00033 1/3 3.3 0.55 0.75
    M300-022 00042 1/3 4.2 0.75 1
    M300-022 00056 1/3 5.6 1.1 1.5
    M300-022 00075 1/3 7.5 1.5 2
    M300-032 00100 1/3 10 2.2 3
    M300-042 00133 1/3 13.3 3 3
    M300-042 00176 3 17.6 4 5
    M300-052 00250 3 25 5.5 7.5 30 7.5 10
    M300-062 00330 3 33 7.5 10 50 11 15
    M300-062 00440 3 44 11 15 58 15 20
    380/480 Vac ± 10%
    Order Code Heavy Duty Normal Duty
    Supply Phases Max Continuous
    Current (A)
    Motor Shaft
    Power (kW)
    Motor Shaft
    Power (HP)
    Max Continuous
    Current (A)
    Motor Shaft
    Power (kW)
    Motor Shaft
    Power (HP)
    M300-024 00013 3 1.3 0.37 0.5 For Normal Duty applications, use Heavy Duty ratings.
    M300-024 00018 3 1.8 0.55 0.75
    M300-024 00023 3 2.3 0.75 1
    M300-024 00032 3 3.2 1.1 1.5
    M300-024 00041 3 4.1 1.5 2
    M300-034 00056 3 5.6 2.2 3
    M300-034 00073 3 7.3 3 3
    M300-034 00094 3 9.4 4 5
    M300-044 00135 3 13.5 5.5 7.5
    M300-044 00170 3 17 7.5 10
    M300-054 00270 3 27 11 20 30 15 20
    M300-054 00300 3 30 15 20 30 15 20
    M300-064 00350 3 35 15 25 38 18.5 25
    M300-064 00420 3 42 18.5 30 48 22 30
    M300-064 00470 3 47 22 30 63 30 40


    500/575 Vac ± 10%
    Drive Supply
    Phases
    Heavy Duty Normail Duty
    Max Continuous
    Current (A)
    Typical Output (kW) Motor Power (HP) Max Continuous
    Current (A)
    Typical Output (kW) Motor Power (HP)
    M300-055 00030 A 3 3 1.5 2 3.9 2.2 3
    M300-055 00040 A 3 4 2.2 3 6.1 4 5
    M300-055 00069 A 3 6.9 4 5 10 5.5 7.5
    M300-065 00100 A 3 10 5.5 7.5 12 7.5 10
    M300-065 00150 A 3 15 7.5 10 17 11 15
    M300-065 00190 A  3 19 11 15 22 15 20
    M300-065 00230 A 3 23 15 20 27 18.5 25
    M300-065 00290 A 3 29 18.5 25 34 22 30
    M300-065 00350 A 3 35 22 30 43 30 40


    Heavy Duty
    Suitable for demanding applications, current overload of 180% (3s) is available for dynamic loads.

    Normal Duty
    Suitable for most application, with a current overload capacity of 110%

    KEY :

    Unidrive M300 ratings and specifications

    Environmental safety and electrical conformance
    • Sitze 1 to 4:

    • IP21 / UL open class (NEMA 1).
      IP20 when the AI-Back-up or AI 185 Adaptors are fitted.
      UL TYPE 1 compliance requires the appropriate Conduit kit to be fitted.
    • Size 5 to 9

    • IP20/UL open class (NEMA 1).
      UL TYPE 1 compliance requires the appropriate Conduit kit to be fitted.
      IP65 / UL TYPE 12 rating is achieved on the rear of drive when through panel mounted.
    • Ambient temperature -20 (-4°F) to 40°C (104 °F) as standard.Up to 60 °C (140 °F) with derating.
    • storage temperature -40°C to 60°C ('-40 °F to 140 °F).
    • Humidity 95 % maximum (non-condensing) at 40 °C (-140 °F ) in accordance with EN/IEC 60068-2-78 and ANSI/EIA-364-31.
    • EN/IEC 60068-2-60. Method 4 Corrosive gas.
    • Altitude:0 to 3000 M ( 0 to 9343ft.) derate 1% per 100 m (328ft) between 1000 m and 3000 m (3281 ft and 9843 ft)
    • Random Vibration:Tested in accordance with EN/IEC 60068-2-64 with SI and AI option modules fitted.
    • Mechanical Shock: Tested in accordance with EN/IEC 60068-2-29
    • Electromagnetic Immunity complies with EN/IEC 61800-3 and EN/IEC 61000-6-2.
    • With onboard EMC filter, complies with EN/IEC 61800-3 (2nd environment).
    • EN/IEC 61000-6-3 and EN/ IEC 61000-6-4 with optional footprint EMC filter.
    • EN/IEC 60146-1-1 Supply conditions.
    • EN/IEC 61800-5-1 Electrical Safety.
    • EN/IEC 61131-2 I/O
    • Safe Torque Off,independently assessed by TUV to EN/IEC 61800-5-2 SIL 3 EN ISO 13849-1 Ple.
    • UL 508C Electrical Safety.


    Dimension and Weight
    Frame Size 1 2 3 4 5 6
    Dimension   mm 137x75x130 180x75x150 200x90x160 245x115x175 379x141x200 379x210x227
    (HxWxD) in 5.4x3.0x5.1 7.1x3.0x5.9 7.9x3.5x6.3 9.7x4.5x6.9 14.9x5.6.7.9 14.9x8.3x8.9
    Weight kg (lb) 0.75 (1.65) 1.0 (2.2) 1.5 (3.3) 3.13 (6.9) 7.4 (16.3) 14(30.9)


    Note:
    Height dimension (H) does not include mounting feet on sizes 1 to 4.
    Additional distance should be added to the height dimension (H) when the following option are fitted:
  • Al-Back-up Adaptor : 15 mm (0.59 in)
  • AI-485 Adaptor:26 mm (1.2 in)


  • Conduit kit
    When the following kits are fitted to the drive, it meets UL Type 1
    Frame size  Order code
    1 3470-0091
    2 3470-0094
    3 3470-0098
    4 3470-0102
    5 3470-0069
    6 3470-0059


    Internal brake resistor
    Frame size  Order code
    5 1299-0003

    Through hole IP65 kit
    IP65 / UL TYPE 12 rating is achieved on the rear of the drive when through panel mounted uing following kits.
    Frame size  Order code
    5 3470-0067
    6 3470-0055

    Retrofit mounting brackets
    These mounting brackets ensure the drive can be mounted on existing Commander SK installations.
    Frame Size Order code
    3 3470-0097
    4 3470-0101
    5 3470-0066
    6 3470-0074

    Optional external EMC filers
    Unidrive M built-in EMC filter complies with EN/IEC 61800 -3. External EMC filters are required for compliance with EN/IEC 61000-6-4 as per table below.
    Frame size Voltage Phases  Type Order code
    1 All 1 Standard 4200-1000
    All 1 Low leakage 4200-1001
    2 100 V 1 Standard 4200-2000
    200 V 1 Standard 4200-2001
    1 Low leakage 4200-2002
    3 Standard 4200-2003
    3 Low leakage 4200-2004
    400 V 3 Standard 4200-2005
    3 Low leakage 4200-2006
    3 200 V 1 Standard 4200-3000
    1 Low leakage 4200-3001
    3 Standard 4200-3004
    3 Low leakage 4200-3005
    400 V 3 Standard 4200-3008
    3 Low leakage 4200-3009
    4  200 V 1 Standard 4200-4000
    1 Low leakage 4200-4001
    3 Standard 4200-4002
    3 Low leakage 4200-4003
    400 V 3 Standard 4200-4004
    3 Low leakage 4200-4005
    5 200 V 3 Standard 4200-0312
    400 V 3 Standard 4200-0402
    575 V 3 Standard 4200-0122
    6 200 V 3 Standard 4200-2300
    400 V 3 Standard 4200-4800
    575 V 3 Standard 4200-3690
