12.1-Inch : GLC-2600T
Memory
  • Application: 4MB FLASH EPROM
  • Program Area: 128KB FEPROM
  • Variable Area: 64KB FEPROM
  • Display 12.1-inch 800 × 600 TFT color LCD
    Color 256 colors (no blink)/ 64 colors (3-speed blink)

    10.4-Inch : GLC-2500T
    Memory
  • Application: 4MB FLASH EPROM
  • Program Area: 128KB FEPROM
  • Variable Area: 64KB FEPROM
  • Display 10.4-inch 640 × 480 TFT color LCD
    Color 256 colors (no blink)/ 64 colors (3-speed blink)

    7.4-Inch : GLC-2400T
    Memory
  • Application: 4MB FLASH EPROM
  • Program Area: 128KB FEPROM
  • Variable Area: 64KB FEPROM
  • Display 7.4-inch 640 × 480 TFT color LCD
    Color 256 colors (no blink)/ 64 colors (3-speed blink)

    5.7-Inch : GLC-2300T
    Memory
  • Application: 2MB FLASH EPROM
  • Program Area: 128KB FEPROM
  • Variable Area: 64KB FEPROM
  • Display 5.7-inch 320 × 240 TFT color LCD
    Color 256 colors (no blink)/ 64 colors (3-speed blink)

    5.7-Inch : GLC-2300L
    Memory
  • Application: 4MB FLASH EPROM
  • Program Area: 128KB FEPROM
  • Variable Area: 64KB FEPROM
  • Display 5.7-inch 320 × 240 Monochrome LCD
    Color 2 Shades

    3.8-inch
    ST400
    Memory Application: FLASH EPROM 640KB
    Display 3.8-inch 320 × 240 Monochrome LCD
    Color Black and White (2 Shades)/ Black and White (8 Shades)
    (software control)
    I/F Serial (RS-422)

    ST401
    Memory Application: FLASH EPROM 640KB
    Display 3.8-inch 320 × 240 Monochrome LCD
    Color Black and White (2 Shades)/ Black and White (8 Shades)
    (software control)
    I/F Serial (RS-232C)

    ST402
    Memory Application: FLASH EPROM 640KB
    Display 3.8-inch 320 × 240 Monochrome LCD
    Color Black and White (2 Shades)/ Black and White (8 Shades)
    (software control)
    I/F Serial (RS-485), Expansion Serial (RS-422)

    ST403
    Memory Application: FLASH EPROM 640KB
    Display 3.8-inch 320 × 240 Monochrome LCD
    Color Black and White (2 Shades)/ Black and White (8 Shades)
    (software control)
    I/F Serial (RS-232C/ 422), Ethernet (10BASE-T)




    Product Name Model No. Description
    Screen Data Transfer Cable GPW-CB02 Connects the ST to a personal computer.
    Screen Data Transfer Cable GPW-CB03 Transfers screen data and user program(s).
    (USB type)
    RS-232C cable*1 5m CA3-CBL232/5M-01 Interface cables between the host (PLC) and the ST.
    RS-422 cable*1 5m CA3-CBL422/5M-01
    Omron PLC SYSMAC Series 5m CA3-CBLSYS-01 Connects Omron PLC SYSMAC Series unit (or other host controller) to the ST. (RS-232C)
    Link Cable
    Mitsubishi PLC A Series 5m CA3-CBLA-01 Connects Mitsubishi PLC A Series programming console I/F to ST.
    Connection Cable
    Mitsubishi PLC Q Series 5m CA3-CBLQ-01 Connects Mitsubishi PLC Q Series programming console I/F to ST.
    Connection Cable
    Mitsubishi PLC FX Series 1m CA3-CBLFX/1M-01 Connects Mitsubishi PLC FX Series programming console I/F and ST.
    Connection Cable 5m CA3-CBLFX/5M-01 (Simultaneous use of programming console is not possible.)

    Maintenance Option
    Product Name Model No. Description
    Screen Protection Sheet sST400-DF01 Disposable, dirt-resistant sheet for the ST's screen.
    The ST's touch panel can be operated with this cover sheet attached. (5 sheets/set)
    Installation Fastener CA3-ATFALL-01 Fasteners to attach the ST to a panel (4 fasteners/set)
    Installation Gasket ST400-WP01 Provides a moisture resistant seal when installing the ST
    Attachment CA4-ATMST-01 When replacing from GP-230/250/270 Series, can be the spacer for the panel face clearance.
    Power Supply Connector CA5-DCCNM-01 Connector for attaching power supply (1 pcs)






    Type A

    Type A1 (STN color LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 STN color LCD
    Color 64 colors
    I/F DIO 32 points (16 input points/ 16 output points, Sink output)

    Type A1 (Monochrome LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 Monochrome LCD
    Color Blue-mode
    I/F DIO 32 points (16 input points/ 16 output points, Sink output)

    Type A2 (Monochrome LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 Monochrome LCD
    Color Blue-mode
    I/F DIO 32 points (16 input points/ 16 output points, Source output)

    Type B+

    Type B+ (STN color LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 STN color LCD
    Color 64 colors
    I/F DIO 32 points (16 input points/ 16 output points, Sink output) Less-wiring master FLEX NETWORK I/F

    Type B+ (Monochrome LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 Monochrome LCD
    Color Blue-mode
    I/F DIO 32 points (16 input points/ 16 output points, Sink output) Less-wiring master FLEX NETWORK I/F

    Type C

    Type C (Monochrome LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 Monochrome LCD
    Color Blue-mode
    I/F Serial I/F (Temperature Controller, Inverter etc.) Less-wiring master FLEX NETWORK I/F

    Type H

    Type H1 (STN color LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 STN color LCD
    Color 64 colors
    I/F
  • DIO 32 points (16 input points/ 16 output points, Sink output) +
  • AD Type (High-speed Conter + Analog Input/ Output)
  • ADT Type (High-speed Conter + Analog Input/ Output + Temperature Input)
  • ADP Type (High-speed Conter + Analog Input/ Output + Pulse/PWM Output)

  • Type H2 (Monochrome LCD) Memory
  • Application: FLASH EPROM 1MB
  • Program Area: 128KB
  • Variable Area: 32KB
  • Display 5.7-inch 320 × 240 Monochrome LCD
    Color Blue-mode
    I/F
  • DIO 32 points (16 input points/ 16 output points, Source output) +
  • AD Type (High-speed Conter + Analog Input/ Output)
  • ADT Type (High-speed Conter + Analog Input/ Output + Temperature Input)
  • ADP Type (High-speed Conter + Analog Input/ Output + Pulse/PWM Output)


  • DIO Interface Specifications

    Input

    Model (Global Code) GLC150-*41-XY32S*-24V (PFXGLC150*DA*)
    Input Voltage DC24V
    Max. Allowable Voltage DC26.4V
    Input Type Sink/ Source input
    Rated Current 5mA (24V)
    Input Resistance 4.7kΩ
    Standard Operating Range ON voltage: 21V min., OFF voltage: 7V max.
    Input Delay OFF→ON 10ms max., ON→OFF 10ms max.
    Common 1
    Common Structure 16 points/common
    External Connection 40-pin connector (also used for output)
    Input Points 16
    Input Signal Indication LED lights for each point ON (logic side)
    Isolation Method Photocoupler isolation
    External Power Supply For Signal: DC24V



    Input

    Model (Global Code) GLC150-*41-XY32SK-24V (PFXGLC150*DA1) GLC150-*41-XY32SC-24V (PFXGLC150BDA2)
    Input Voltage DC24V
    Rated Voltage Range DC24V ±10%
    Output Type Type A1 Sink output Type A2 Source output
    Max. Load Current 0.2A/point, 1.6A/common
    Output Voltage Drop 2.5V or less
    Output Delay OFF→ON: 2ms max., ON→OFF: 2ms max.
    Leakage Current when OFF 0.4mA or less
    Output Classification Transistor output
    Common 1
    Common Structure 16 points/common
    External Connection 40-pin connector (also used for input)
    Output Protection Classification No protection
    Internal Fuse 3.5A, 125V chip fuse (not replacable)
    Surge Suppression Circuit Diode
    Output Points 16
    Output Signal Indication LED lights for each point ON (logic side)
    Isolation Method Photocoupler isolation
    External Power Supply DC24V


    DIO Interface Connector Specifications and Circuit Diagrams The sink/ source type DIO integrates 16 input/ output points into a compact unit.
    The Type A1/ A2 LT supports up to 16-point inputs and 16-point outputs, ideal for connecting peripheral I/O devices.

    DIO Connector (Type A1: Sink Output)

    Pin Signal Pin Signal
    A1 COM (0V: DOUT) B1 COM (24V: DIN)
    A2 COM (0V: DOUT) B2 DC24V (DOUT)
    A3 NC B3 NC
    A4 NC B4 NC
    A5 DOUT15 B5 DIN15
    A6 DOUT14 B6 DIN14
    A7 DOUT13 B7 DIN13
    A8 DOUT12 B8 DIN12
    A9 DOUT11 B9 DIN11
    A10 DOUT10 B10 DIN10
    A11 DOUT9 B11 DIN9
    A12 DOUT8 B12 DIN8
    A13 DOUT7 B13 DIN7
    A14 DOUT6 B14 DIN6
    A15 DOUT5 B15 DIN5
    A16 DOUT4 B16 DIN4
    A17 DOUT3 B17 DIN3
    A18 DOUT2 B18 DIN2
    A19 DOUT1 B19 DIN1
    A20 DOUT0 B20 DIN0

    1. This front diagram shows the connector on the DIO unit side. When preparing the cable, note that the A and B stamps indicate the number 1 pins.

    DIO Connector (Type A2: Source Output)

    Pin Signal Pin Signal
    A1 COM (24V: DOUT) B1 COM (0V: DIN)
    A2 COM (24V: DOUT) B2 0V (DOUT)
    A3 NC B3 NC
    A4 NC B4 NC
    A5 DOUT15 B5 DIN15
    A6 DOUT14 B6 DIN14
    A7 DOUT13 B7 DIN13
    A8 DOUT12 B8 DIN12
    A9 DOUT11 B9 DIN11
    A10 DOUT10 B10 DIN10
    A11 DOUT9 B11 DIN9
    A12 DOUT8 B12 DIN8
    A13 DOUT7 B13 DIN7
    A14 DOUT6 B14 DIN6
    A15 DOUT5 B15 DIN5
    A16 DOUT4 B16 DIN4
    A17 DOUT3 B17 DIN3
    A18 DOUT2 B18 DIN2
    A19 DOUT1 B19 DIN1
    A20 DOUT0 B20 DIN0

    This front diagram shows the connector on the DIO unit side. When preparing the cable, note that the A and B stamps indicate the number 1 pins

    Common Interface Specifications

    Alarm Output

    Contact Ratio AC125V at 0.15A (resistive load), DC24V at 0.6A (resistive load)
    Set Time (at 20℃) 4ms or less
    Reset Time (at 20℃) 4ms or less
    Min. Switching Load 1mA/ DC5V
    Initial Contact Resistance 100mΩ or less

    Tool Connector

    Tool Connector Asynchronous: TTL level non-procedural commandConnect data transfer cable for transferring data from LT Editor.

    When LT Series is powered up and the system is booted, the relay of the alarm output circuit turns ON. When a major error or watchdog error occurs,
    this relay switch turns OFF. An external fail-safe circuit can be provided to monitor this relay output.

    Note: The relay output remains OFF until the LT system starts (approx. 1 second). In this case, the external
    supervisory monitoring circuit has to recognize that the LT is not yet operating.

    A timer circuit, which recognizes a non-operating LT is required. Otherwise the alarm monitoring system
    should be booted up after turning on the LT power supply.

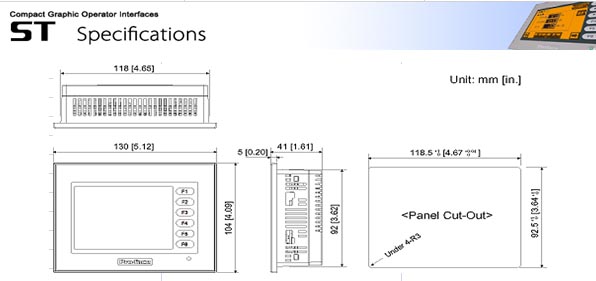

    External Dimentions
    Note: Panel thickness should be between 1.6 and 5.0 mm (0.06 to 0.02 in.),
    and should be based on the strength required to mount the LT to the panel.
